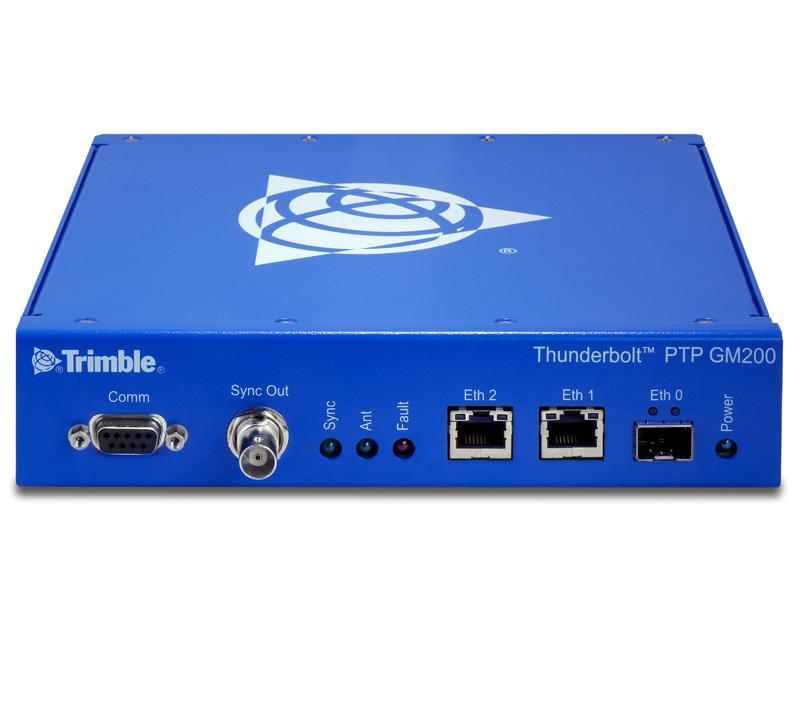

Trimble Thunderbolt PTP GM200 Grand Master - PTP (111224-20)

Product code: GP-PTP-GM200-PTP /Manufacturer: Trimble /Produktový kód: 111224-20

trimble-thunderbolt-ptp-gm200-grand-master-2sfp-obrazek

1 637.50 EUR Without VAT

On request When do I get the item?

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 12 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Trimble Thunderbolt® PTP Grandmaster Clock

The Trimble Thunderbolt® PTP Grandmaster Clock is designed for wireless networks requiring phase synchronization. The GM200 provides continuous availability of UTC traceable time for phase synchronization, a must for LTE-Advanced networks and services.

The Thunderbolt PTP GM200 employs industry-leading Trimble GNSS solution & holdover technology.

Key Features:

• IEEE 1588 PTP Grandmaster Clock
• Multi GNSS for improved reliability/redundancy
• 15ns time accuracy relative to GPS reference
• Supports 250 simultaneous PTP clients
• Holdover of ±1.5us over 4 hours
• Starter kit available
• –40 to +85°C temperature operation

More information can be found in the attached datasheet.

Parameters

Certifikace: RoHS2 / WEEE / RED Power supply: 36 – 72 V
Operational temperature: -40 to +85 °C Dimensions: 20.8 x 20 x 4.4 mm
Technology : GLONASS / PTP / SYNCE
