Product code: AW-A24G-W402SRP
Producer: SECTRON

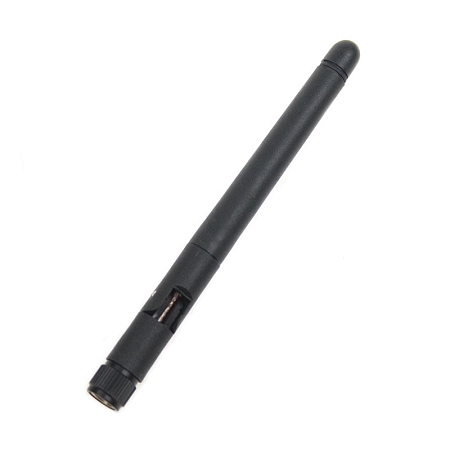

Antenna WiFi Connector Mount W402, 2.4 GHz, 90°/180°, 3 dBi, RP-SMA(f pin)

Product code: AW-A24G-W402SRP
Producer: SECTRON

Antenna WiFi Connector Mount W402, 2.4 GHz, 90°/180°, 3 dBi, RP-SMA(f pin)

Omnidirectional interior antenna with a gain of 3 dBi, working in 2.4 GHz band.

4.03incl. VAT (21%) / pc

excl. VAT 3.33 € / pc

Temporarily unavailable
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional interior WiFi antenna

Omnidirectional interior antenna with a gain of 3 dBi, working in 2.4 band and is suited for receiving/transmitting Wi-Fi signal. The antenna is suited for routers/modems. It has an SMA-RP (f pin) connector and easy to install.

Specification connector SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

More information can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Connector RP-SMA(f)
Maximum input power 10  W Polarization Linear
Execuion External Operating temperature -40 ~ +85  °C
Dimensions 10 x 108.5  mm Directivity Omnidirectional
Technology WiFi Weight 10.13  g
Gain 3  dBi VSWR <2.0:1
Radiation angle H 360 V 30 Type of attachment Connector mount

4.03incl. VAT (21%) / pc

excl. VAT 3.33 € / pc
