Product code: AW-A24G-2M150
Producer: SECTRON

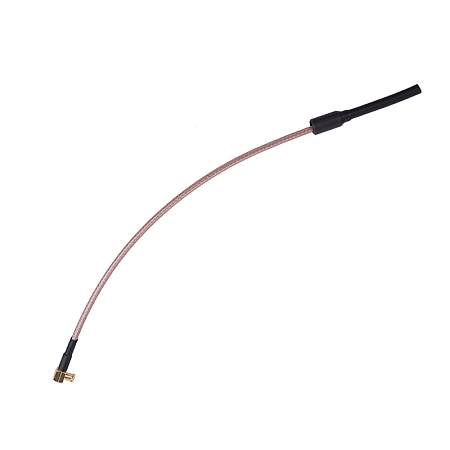

Antenna 0dBi build MCX 150mm

Product code: AW-A24G-2M150
Producer: SECTRON

Antenna 0dBi build MCX 150mm

Omnidirectional interior antenna operates working in 2.4 GHz band and is suited for receiving/transmitting Wi-Fi signal.

8.35incl. VAT (21%) / pc

excl. VAT 6.90 € / pc

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional interior Wi-Fi antenna

Omnidirectional interior antenna operates working in 2.4 GHz band and is suited for receiving and transmitting Wi-Fi/Bluetooth signals. The antenna is suitable for signal transmission over short distances, eg in homes or cars. Used for connection to routers and modems. The antenna includes a coaxial cable that is terminated with an MCX (m) 90 ° connector. The cable length is 159 mm.

Connector specifications MCX:

These are coaxial connectors with latch mechanism. Compatible with SMB connectors, but they are also 30% smaller than SMB connectors. The dimensions of the internal contact and the insulator are the same. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 6 GHz. They are characterized by high reliability and mechanical stability. They are also used as standard connectors in GPS devices, WLAN networks, fixed and mobile communications.


Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RG178/U
Connector MCX(m) R/A Maximum input power 10  W
Polarization Linear Execuion External
Operating temperature -30 ~ +85  °C Dimensions 8.6 x 6.8 x 206  mm
Directivity Omnidirectional Technology WIFI , Bluetooth
Gain 0  dBi VSWR <1.2:1
Radiation angle H 360 V 30
