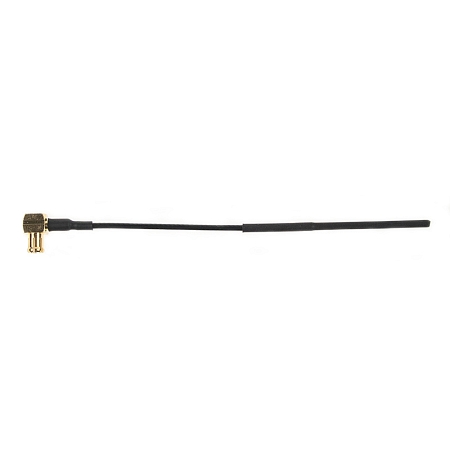

Antenna 0dBi build MCX 40mm

Item code: AW-A24G-2M040 /Manufacturer: SECTRON

aw-a24g-2m040-1 aw-a24g-2m040-2 aw-a24g-2m040-3

5.01 EUR Without VAT

On request When do I get the item?

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 24 months
Name and surname*
By submitting the form, you agree to the privacy policy.
Your name and surname*
Send e-mail*
By submitting the form, you agree to the privacy policy.


Omnidirectional WiFi/BLUETOOTH antenna

Omnidirectional WiFi/Bluetooth antenna working in band 2.4 GHz. It is suited for routers in vehicles. It has an MCX(m) 90° connector.

Connector specifications MCX:

These are coaxial connectors with latch mechanism. Compatible with SMB connectors, but they are also 30% smaller than SMB connectors. The dimensions of the internal contact and the insulator are the same. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 6 GHz. They are characterized by high reliability and mechanical stability. They are also used as standard connectors in GPS devices, WLAN networks, fixed and mobile communications.

Technical parameters can be found in the attached datasheet.


impendance: 50 Ohm Cable: RG316/U
Connector: MCX(m) R/A Maximum input power: 10 W max.
Polarization: Linear Execution: External
Operational temperature: -30 °C - +85 °C Dimensions: 8.6 x 5 x 90 mm
Directivity: Omni-directional Technology : WiFi / Bluetooth
VSWR: <1.2:1 Radiation angle: H 360° V 30°
GAIN: 0 dBi
