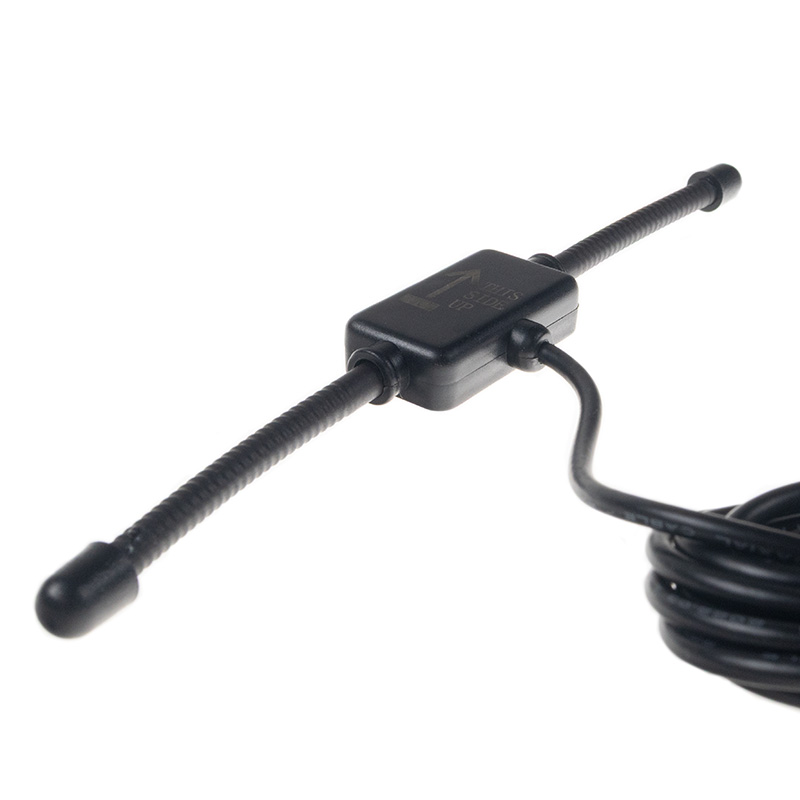

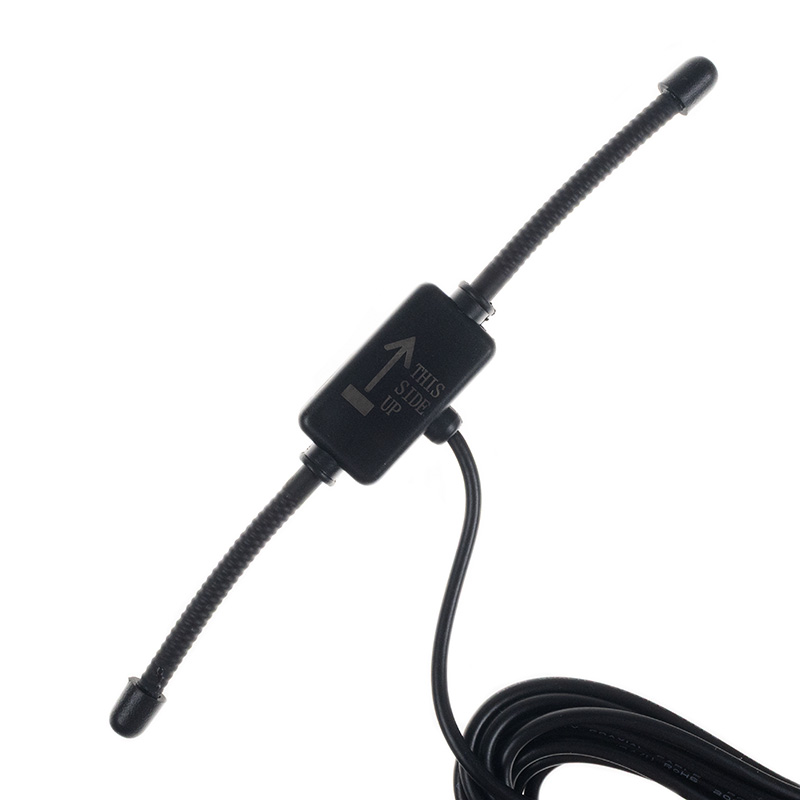

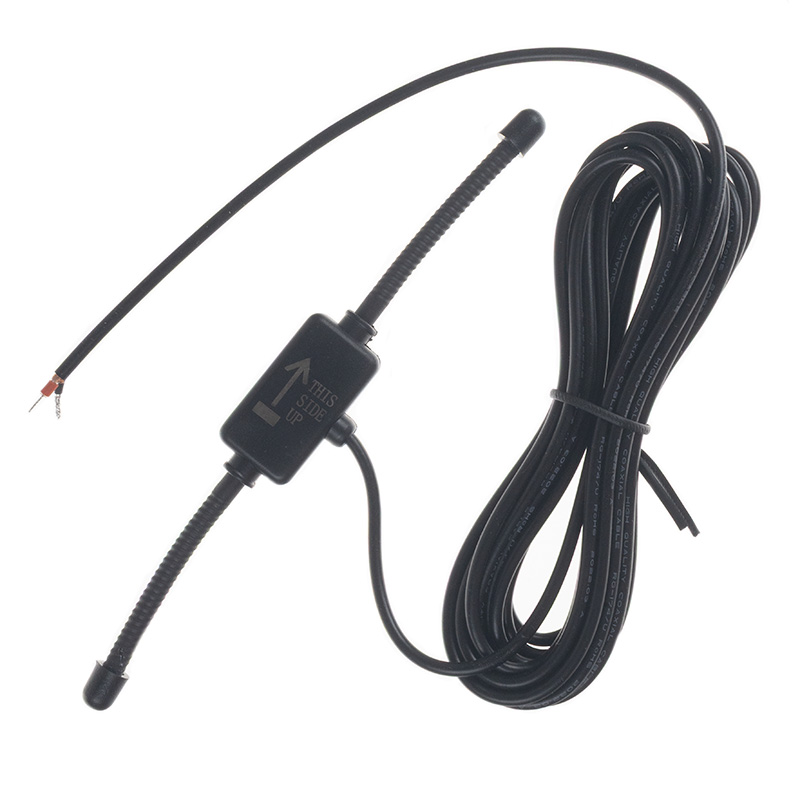

Antenna 433 MHz D824, 3m RG174, open end, soldered

Product code: AO-A433-D824-O3 /Manufacturer: SECTRON

New item
ao-a433-d824-o3-antenna-obrazek

3.94 EUR Without VAT

On request When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional ISM antenna

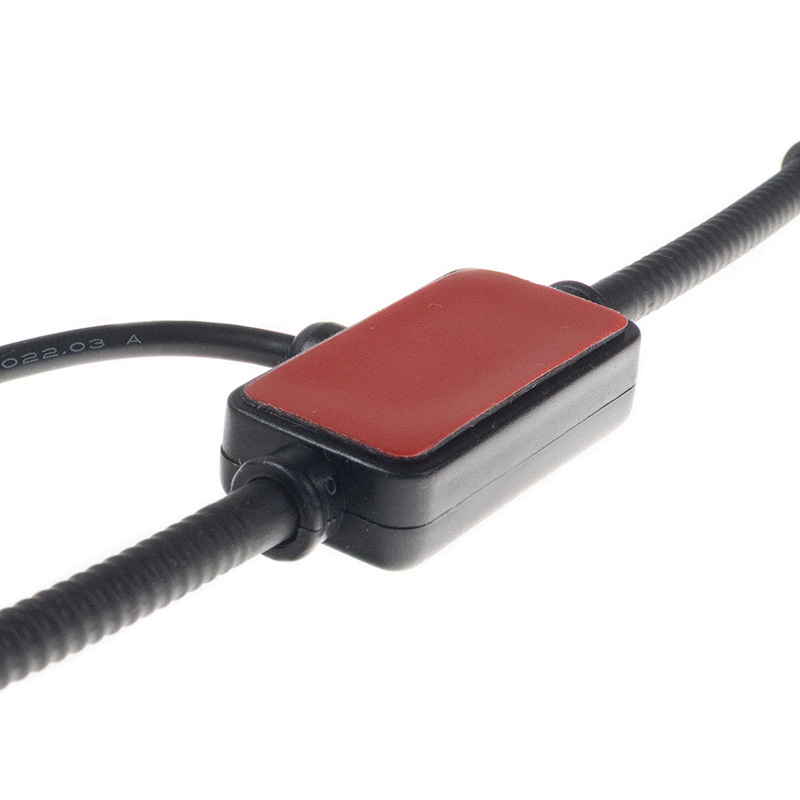

Omnidirectional antenna with open end or optional connector for receiving signals in ISM technology. The antenna operates in band 433 MHz. The antenna may be part of your industrial equipment, such as remote monitoring, smart metering. A cable RG174/U with a length of 3 m is attached to the antenna. Comes with 3Mdouble-sided tape for easy mounting.

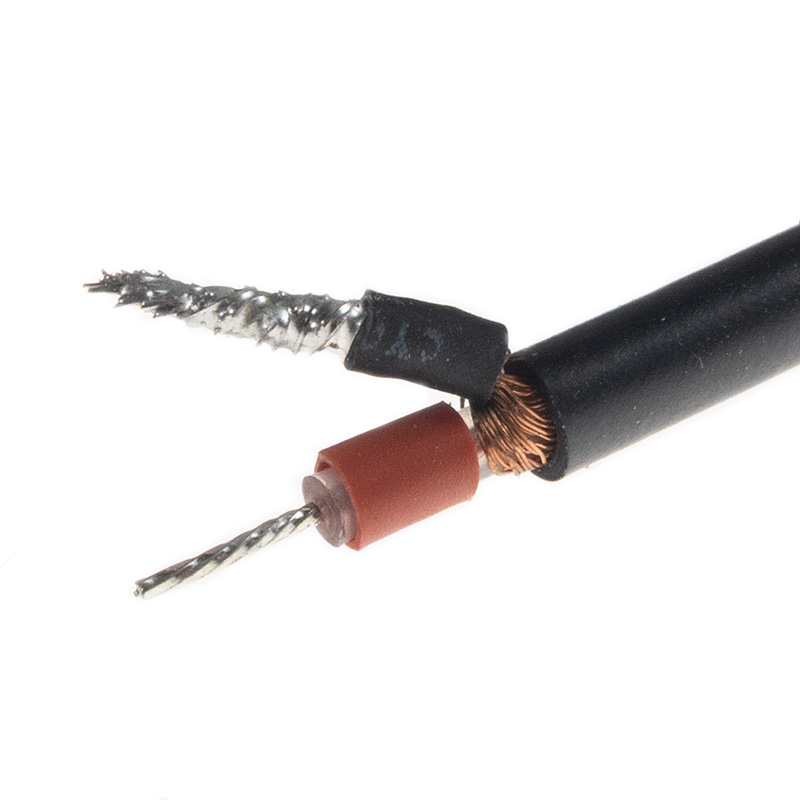

Connector cable RG174/U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc. There are also specially modified types of RG174/U cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.

Technical parameters can be found in the attached datasheet.

Parameters

Certifikace: RoHS impendance: 50 Ohm
Cable: RG174/U Connector: Volný konec
Maximum input power: 10 W max. Polarization: Linear
Execution: External Operational temperature: -40 °C - +85 °C
Dimensions: 150.2 x 21.5 x 8.7 mm Directivity: Omni-directional
Technology : ISM Weight: 42.27 g
VSWR: <2.0:1 Radiation angle: H 100° V 60°
GAIN: 0 dBi TYPE OF ATTACHMENT: Adhesive
