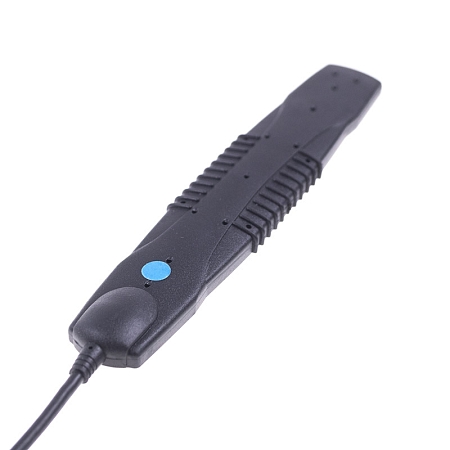

Antenna 5G Adhesive SA1, 600-6000 MHz, 2.5 dBi, SMA(m), RG174U/3m

Product code: AO-A5G-SA1S /Manufacturer: SECTRON

New item
ao-a5g-sa1s-5g-antena

9.24 EUR Without VAT

On request When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Directional adhesive GSM/UMTS/LTE/5G antenna

Directional adhesive antenna designed for receiving/transmitting GSM/UMTS/LTE/5G signal reception. The antenna operates in the bands 600 - 6000 MHz. It is adjusted and ready for the upcoming 5G technology. It is suitable for use in the field of M2M as well as in IoT devices and IoT systems. It comes with 3M sticker for easy assembly. The antenna is supplied with 3m cable RG174/U with SMA(m) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a much cheaper variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. It is mainly used for the frequency range 0 - 1 GHz, it can also be used for higher frequencies, but at the cost of higher attenuation – see the attached attenuation table below. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parameters

Certifikace: RoHS / ISO 9001 / ISO 14001 impendance: 50 Ohm
Cable: RG174/U Connector: SMA(m)
Polarization: Linear Execution: External
Operational temperature: -40 °C - +60 °C Dimensions: 29.5 x 22.8 x 6.7 mm
Directivity: Omni-directional Technology : GSM / UMTS / LTE / 5G
VSWR: <2.0:1 GAIN: 2.5 dBi
TYPE OF ATTACHMENT: Adhesive
