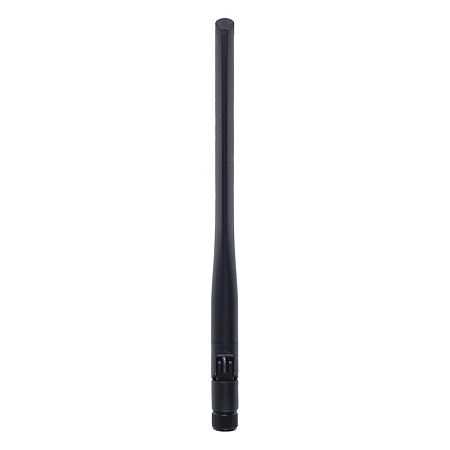

Antenna 5G Connector Mount G410NR, 90°/180°, 698-3800 MHz, 3 dBi, SMA(m)

Item code: AO-A5G-G410NR /Manufacturer: SECTRON

New item
ao-a5g-g410nr-01 ao-a5g-g410nr-05 ao-a5g-g410nr-02 ao-a5g-g410nr-03 ao-a5g-g410nr-04

9.24 EUR Without VAT

In stock When do I get the item?

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 24 months
Name and surname*
By submitting the form, you agree to the privacy policy.
Your name and surname*
Send e-mail*
By submitting the form, you agree to the privacy policy.


Omnidirectional screw mount antenna 5G/GSM/UMTS/LTE

Omnidirectional screw mount antenna designed for GSM/UMTS/LTE/5G signal reception. The antenna 5G operates in bands 698-960/1710-2690/3300-3800 MHz. It is adjusted and ready for the upcoming 5G technology. The antenna 5G can be used in M2M as well as in IoT devices and systems. The antenna is supplied with SMA (m) connector.

Connector SMA specifications:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi/2G/3G/LTE/GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Technical parameters can be found in the attached datasheet.


Certifikace: RoHS impendance: 50 Ohm
Connector: SMA(m) Maximum input power: 10 W max.
Polarization: Linear Execution: External
Operational temperature: -40 °C - +85 °C Dimensions: 13 x 198 mm
Directivity: Omni-directional Technology : GSM / UMTS / LTE / 5G
VSWR: <3.0:1 GAIN: 3.5 dBi
TYPE OF ATTACHMENT: Connector mount
