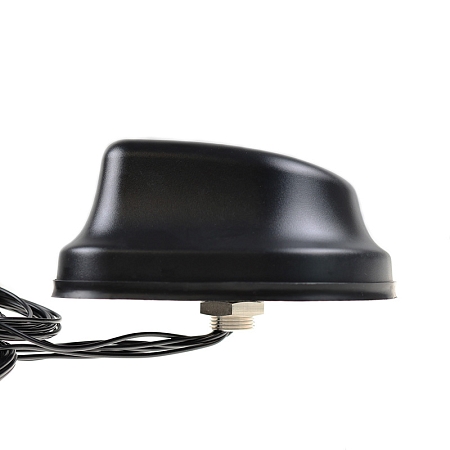

Combined mounting MIMO antenna for technologies 5G/LTE/GNSS/WIFI
Combined mounting MIMO antenna designed for receiving and transmitting signals 5G/LTE/GNSS/WIFI technologies. Operates in the bands 698-960/1176/1227.6/1575.42/1710-2690/2900-3800/4900-5925 MHz. When MIMO technology is used, the resulting system achieves higher transmission rates, an increase in the signal level and thus the Internet speed. MIMO technology (Multiple-Input Multiple-Output) enables transmission and reception of signals using multiple antennas at the same time. It is used in mobile networks to improve the performance and capacity of 5G and LTE networks. The antenna can be used in the M2M field as well as in IoT systems and IoT devices. It is also ideal for use in industrial applications such as wireless modems and routers.
The antenna is supplied with seven 3m RG174 cables terminated with five SMA(m) connectors and two RP-SMA(f) connectors.
Thanks to the high degree of protection IP67, it is also suitable for outdoor installation.
Connector specifications SMA:
These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi/2G/3G/LTE/GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.
Cable specifications LMR100:
The LMR100 coaxial cable is compatible with connectors applicable to 2.8 mm cable outer diameter, such as SMA Male, TNC Male, N Male, N Female. It is mainly used for the frequency range 0-6 GHz. The characteristic impedance is 50 Ω. The most common cables of this type have a temperature range of -40 °C to + 85 °C. The LMR100 cable is used for connecting antennas as well as for VHF and UHF applications. It is suitable for indoor and outdoor applications. There are also specially adapted types of LMR100 cables for outdoor use, which are UV resistant, and for use in extreme conditions. It is made from different materials, different qualities.
Technical parameters can be found in the attached datasheet.
