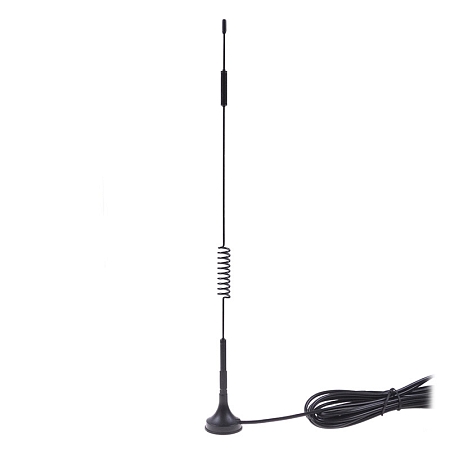

Antenna 5G/WiFi Dual Band Magnet Mount
The magnetic antenna with a built-in magnet for placement on any metal surface is an ideal solution for signal reception in 5G and WiFi Dual Band technologies. The 5G antenna with a gain of 6 dBi works in 690‐960 / 1710‐2700 / 3300‐4400 / 5100‐5950 MHz bands. It is designed to make better use of frequencies. The antenna can be used in M2M, IoT systems and in many other IoT devices in industry and robotics. Thanks to the degree of protection IP65 is suitable for outdoor installation. It includes a 3 m long RG174 cable terminated with an SMA (m) connector.
Connector specifications SMA:
These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties
Cabel specifications RG174:
The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc. There are also specially modified types of RG174/U cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.
Technical parameters can be found in the attached datasheet.
