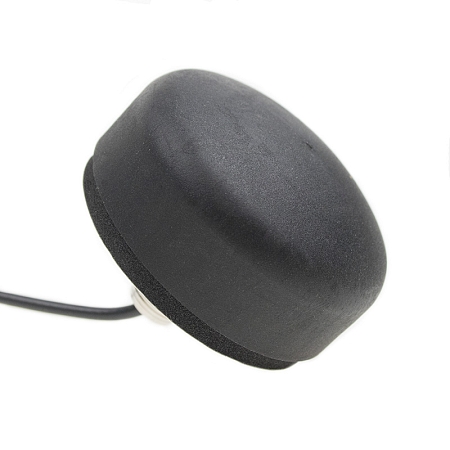

Antenna 868 MHz Screw Mount R36, PUCK, SMA(m), RG174/5m, IP67, Rubber Protective Coating

Product code: AO-A868-36S5 /Manufacturer: SECTRON

a868-36s5-02 a868-36s5-03 a868-36s5-04 a868-36s5-01

10.83 EUR Without VAT

On request When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional mounting antenna 868 MHz

Omnidirectional mounting antenna for receiving signals in ISM/LoRa/Sigfox technologies. The antenna operates in 8433/868 MHz bands. It meets the requirements of several technologies such as LoRa, SigFox etc. Thanks to its parameters and specific design with connector variability and variable cable length, it fits perfectly with your wireless IoT device. The antenna is supplied with 5m RG174/U cable with SMA(m) connector. Thanks to the protection IP67, it is suitable for outdoor use.

Specifications connector SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Specifications cable RG174 / U:

The cable labeled RG174 / U is a much cheaper variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. It is mainly used for the frequency range 0 - 1 GHz, it can also be used for higher frequencies, but at the cost of higher attenuation – see the attached attenuation table below. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parameters

Certifikace: RoHS impendance: 50 Ohm
Cable: RG174/U Connector: SMA(m)
Maximum input power: 10 W max. Polarization: Linear
Execution: External Operational temperature: -40 °C - +60 °C
Dimensions: 81.3 x 31.3 mm Directivity: Omni-directional
Protection rating: IP67 Technology : ISM / LoRa / Sigfox
Weight: 152.27 g VSWR: <1.2:1 / <1.8:1
GAIN: -10 dBi / 2.72 dBi TYPE OF ATTACHMENT: Screw
