Product code: AO-ACDMA-MA80
Producer: SECTRON

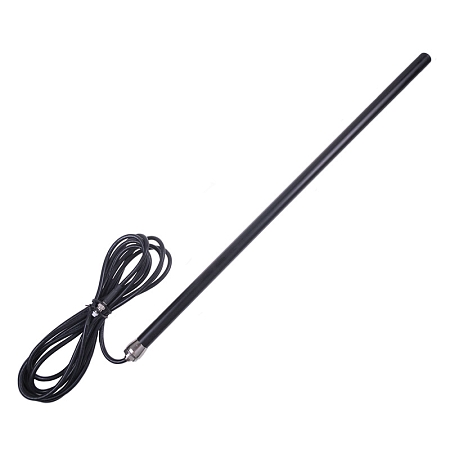

Antenna CDMA Wall Mount MA80, 450 MHz, FME(f), RG58/3m

Product code: AO-ACDMA-MA80
Producer: SECTRON

Antenna CDMA Wall Mount MA80, 450 MHz, FME(f), RG58/3m

Omnidirectional outdoor antenna suitable as receiver/transmitter of signal, working in frequencies of CDMA technology - 450 MHz.

32.59incl. VAT (21%) / pc

excl. VAT 26.93 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional outdoor CDMA antenna

Omnidirectional antenna suitable as receiver/transmitter of signal, working in frequencies of CDMA technology - 450 MHz. It is remarkable by its 7 dBi gain and robust construction, which ensures high weather and dust resistance. The antenna with the degree of protection IP67 is suitable for outdoor mounting. It is supplied with a 3 m RG58 cable terminated with an FME (f) connector.

The package contains a holder that ensures a firm and stable attachment of the antenna.

Connector specifications FME:

FME coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 2 GHz. Thanks to their compact size and long longevity, the FME connectors are used in the field of mobile communications as well as for GSM antennas. They are suitable for installation in vehicles as well.

Cable specifications RG58:

The RG58 coaxial cable is compatible with connectors applicable to a 5 mm cable diameter. It is mainly used for the 0-1 GHz frequency range, it can also be used for higher frequencies, but at the cost of higher attenuation. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 75 ° C. This cable is suitable for external WiFi / GPS / GSM antennas. It is also often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / N / SMA / TNC and others. There are also specially modified types of RG58 cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.

Technical parameters can be found in the attached datasheet.


Parameters

Impedance 50  Ohm Cabel RG58/U
Connector FME(f) Maximum input power 10  W
Polarization Linear Execuion External
Operating temperature -20 ~ +60  °C Dimensions 496 x 20  mm
Directivity Omnidirectional Technology CDMA
Weight 395  g Gain 7  dBi
VSWR <1.05:1 Radiation angle H 360 V 30
Type of attachment Screw Mount Ingress protection (IP) IP67

32.59incl. VAT (21%) / pc

excl. VAT 26.93 € / pc
