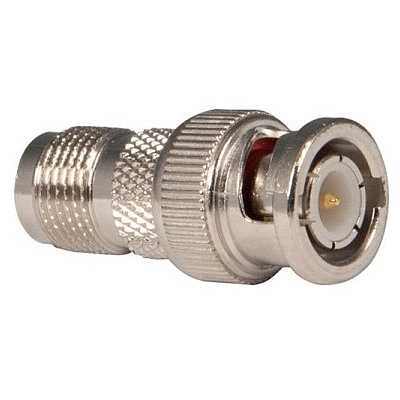

Antenna Connector Adapter BNC (m) to TNC (f)
This connector adapter allows you to connect a device with a BNC connector to a device with a TNC connector.
Connector specifications BNC:
BNC high-frequency coaxial connectors are manufactured with an impedance of 50 or 75 Ohm. They are designed for use with various types of coaxial cables, eg types RG-58, RG-59, to RG-179, RG-316. The operating frequency range is up to 4 GHz and operating temperature - 40 °C to + 155 °C. Mounting the connector is quick and easy, thanks to the snap-in bayonet, the connection is firm and solid. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. These connectors are most often used in radio telecommunications, television technology or test equipment.
Connector specifications TNC:
TNC coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency range up to 11 GHz. TNC connectors are used, for example, to connect wireless WLAN devices, test equipment and GSM / GPS / Wi-Fi antennas.
