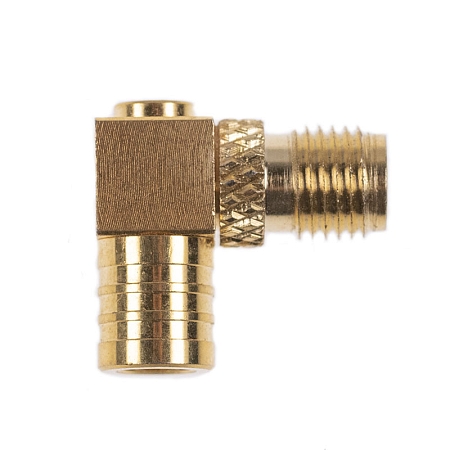

Antenna Connector Adapter SMA(f) to SMB(f), right angle

Product code: AO-SMAF-SMBF /Manufacturer: SECTRON

ao-smaf-smbf-01 ao-smaf-smbf-nakres ao-smaf-smbf-03 ao-smaf-smbf-04 ao-smaf-smbf-02

2.62 EUR Without VAT

In stock When do I get the item?

Price from 10 pieces 2.36 EUR

Price from 100 pieces 10.11 EUR

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Connector adaptor SMA (f) to SMB (f), Right Angle

Connector adaptor is used to connect devices that have different types of connectors. This adaptor consists of connectors SMA (f) and SMB (f) Right Angle.

Connector specifications SMB:

SMB coaxial connectors are characterized by high reliability and mechanical stability. Snap-on mechanism provides fast and reliable connection. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 4 GHz. They are used, for example, to connect wireless WLAN devices, test devices and GSM / GPS / Wi-Fi antennas.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanisms. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Parameters

Connector: SMA(f) / SMB(f)
