Antenna DVB-T2 Magnet Mount 45, 3C2V/3.5m, PAL(m)

Item code: AO-ADVBT-45P /Manufacturer: SECTRON

ao-advbt-45p-dvbt2-antena-01 ao-advbt-45p-dvbt2-antena-04 5p ao-advbt-45p-dvbt2-antena-02 ao-advbt-45p-dvbt2-antena-03

10.77 EUR Without VAT

In stock When do I get the item?

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

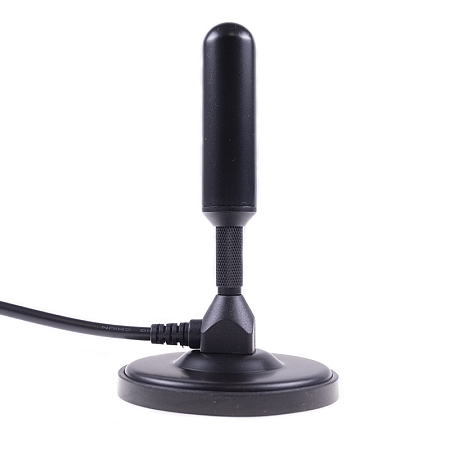

Magnetic antenna for DVB-T2 signal

Rod antenna with a magnetic base designed for TV reception of DVB-T2 signal. The antenna operates in bands 470-860 MHz and is suitable for areas with a weak signal. Thanks to the built-in magnet, it is suitable for placement on any metal surface. The antenna is supplied with a 3.5 m 3C2V cable terminated with a PAL (m) connector.

More information can be found in the attached datasheet.

Parameters

impendance: 75 Ohm Cable: 3C2V
Connector: PAL(m) Maximum input power: 10 W max.
Polarization: Linear Execution: External
Operational temperature: -20 °C - +65 °C Dimensions: 80 x 135 mm
Directivity: Omni-directional Technology : DVB-T2
Weight: 371.27 g VSWR: <2.0:1
Radiation angle: H-360°. V-30° GAIN: 0 dBi
TYPE OF ATTACHMENT: Magnet Mount
