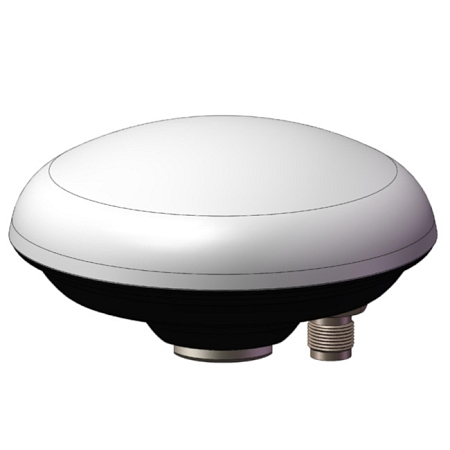

Antenna GNSS L1/L2/L5 208, TNC-K

Product code: AP-AGNSS-A208 /Manufacturer: SECTRON

antena-gnss

258.78 EUR Without VAT

On request When do I get the item?

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Directional GNSS antenna

Directional GNSS antenna with 4 dBi gain operates in the frequency range 1176.45‐1575.42 / 1201‐605.375 / 1268.52‐1589.742 MHz. It supports a range of GNSS technologies such as GPS / GLONASS / COMPASS / Galileo and even supports the L5 GPS band. The antenna is equipped with a TNC connector. The robust housing and degree of protection IP67 ensure high performance even in the most demanding working conditions. The antenna in combination with the amplifier achieves a high overall gain of up to 40 dB.

Specifications connector TNC:

TNC coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency range up to 11 GHz. TNC connectors are used, for example, to connect wireless WLAN devices, test equipment and GSM / GPS / Wi-Fi antennas.

Technical parameters can be found in the attached datasheet.

Parameters

Certifikace: RoHS impendance: 50 Ohm
Connector: TNC(f) LNA Gain: 40 dB
Material: ABS Maximum input power: 10 W max.
Input voltage: 3.0 V - 12 V DC Polarization: R.H.C.P.
Execution: External Operational temperature: -40 °C - +85 °C
Dimensions: 100.5 x 53.5 mm Directivity: Directional
Protection rating: IP67 Technology : GPS / GLONASS / COMPASS / GALILEO
VSWR: <1.5:1 GAIN: 4 dBi
TYPE OF ATTACHMENT: Connector mount
