Antenna GNSS Screw Mount Marine, TNC(f), 20m lowloss cable .195, SMA/TNC

Product code: AP-AGPS-10T20 /Manufacturer: SECTRON

ap-agps-10t20-01 ap-agps-10t20-04 ap-agps-10t20-02 ap-agps-10t20-07 ap-agps-10t20-06 ap-agps-10t20-03 ap-agps-10t20-05

56.17 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

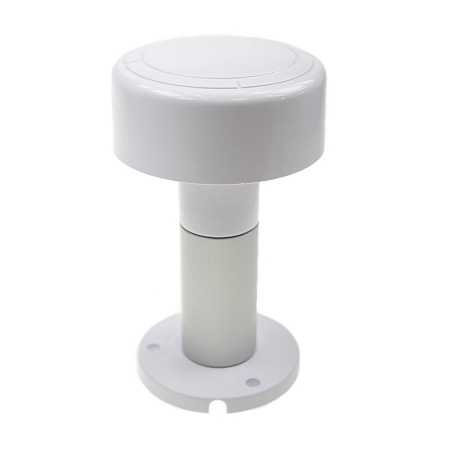

Antenna GNSS Screw Mount Marine

Omnidirectional Marine Antenna is designed to receive signal for GPS/Glonass technologies. Works in the 1575.42/1602 MHz bands. In combination with an amplifier, this active antenna achieves up to 30 dBi of total gain. The antenna is highly resistant to harsh weather conditions. The antenna is supplied with a cable reduction with a length of 20 m with an SMA (m) connector.

Connector specifications TNC:

TNC coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency range up to 11 GHz. TNC connectors are used, for example, to connect wireless WLAN devices, test equipment and GSM / GPS / Wi-Fi antennas.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications .195:

The .195 coaxial cable is compatible with connectors applicable to cables with 4.95 mm outer diameter. It is mainly used for the frequency range 0-6 GHz. The characteristic impedance is 50 Ω and the operating temperature range -40 °C to + 85 °C. The shortening factor is set at 0.79. The .195 cable is used in metrology, wireless communications, the automotive industry and also for VHF and UHF applications. It is also often used for creating cable adaptors with plug connectors such as BNC / N / SMA / TNC.


Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RG195/U
Connector: SMA(m) Maximum input power: 10 W max.
Input voltage: 2.5-5.5 V DC Polarization: R.H.C.P.
Execution: External Operational temperature: -20 °C - +65 °C
Dimensions: 140 x 80 mm Directivity: Omni-directional
Technology : GPS / GLONASS Weight: 889.25 g
VSWR: <2.0:1 Radiation angle: H 360° V 30°
GAIN: 30 dBi TYPE OF ATTACHMENT: Mounting
