Antenna GPS Active Magnet Mount EA-200, 30 dB, SMA(m), RG174/2m, IP67

Product code: AP-A20S-M2 /Manufacturer: SECTRON

ap-a20s-m5-2 ap-a20s-m5-3 ap-a20s-m5-1

6.94 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

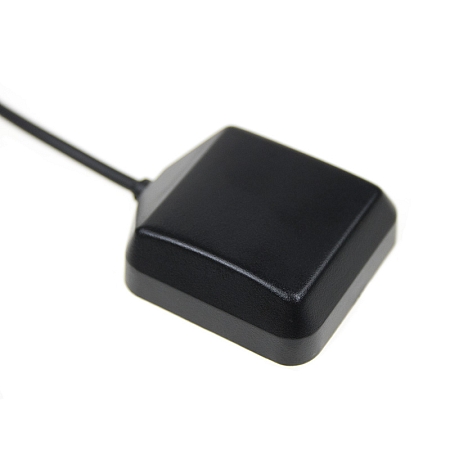

Antenna GPS Active Magnet Mount

The directional antenna with a built-in magnet is designed to receive a signal in GPS technology. It operates in the 1575.42 MHz band. In combination with an amplifier, this active antenna achieves a total gain in the GPS band of 30 dB. Thanks to the degree of protection IP67, the antenna is also suitable for outdoor use, it can be mounted on the roof of the car. It is used for navigation and tracking systems, electronic books and other devices. The antenna is supplied with a 2 m long RG174 / U cable, which is terminated with an SMA (m) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties

Cable specifications RG174 / U:

The cable labeled RG174 / U is a much cheaper variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. It is mainly used for the frequency range 0 - 1 GHz, it can also be used for higher frequencies, but at the cost of higher attenuation – see the attached attenuation table below. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 ° C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parameters

Certifikace: RoHS / ISO9001 / ISO14001 impendance: 50 Ohm
Cable: RG174/U Connector: SMA(m)
LNA Gain: 30 dB Maximum input power: 10 W max.
Input voltage: 3.0 - 5 V Polarization: R.H.C.P.
Execution: External Operational temperature: -20 °C - +60 °C
Dimensions: 38.2 x 34.2 x 12.6 mm Directivity: Directional
Technology : GPS Weight: 49.6 g
VSWR: <1.51:1 GAIN: -2 dBi
TYPE OF ATTACHMENT: Magnet Mount
