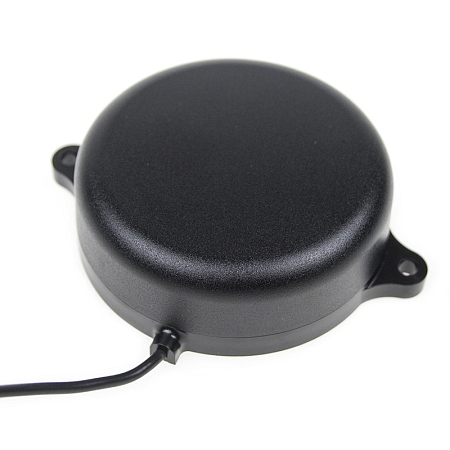

Antenna GPS/GLONASS L1/L2 Screw Mount R55, SMA(m), RG174/5m

Product code: AP-AGNSS-55S
Producer: SECTRON

Antenna GPS/GLONASS L1/L2 Screw Mount R55, SMA(m), RG174/5m

Omnidirectional internal antenna for GPS(L1)/GPS(L2)/GLONASS. The antenna operates in bands 1575.42/1227.6/1602.6 MHz.

43.87incl. VAT (21%) / pc

excl. VAT 36.26 € / pc

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional GNSS antenna

Omnidirectional internal antenna for GPS(L1)/GPS(L2)/GLONASS. The antenna operates in bands 1575.42/1227.6/1602.6 MHz. The antenna reaches up to 25/25/23 ± 3 dBi gain when combined with an amplifier. The antenna is suitable for cars and the others vehicles.

The antenna is supplied with 5m cable RG174/U with SMA(m) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties

Cable specifications RG174 / U:

The cable labeled RG174 / U is a much cheaper variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. It is mainly used for the frequency range 0 - 1 GHz, it can also be used for higher frequencies, but at the cost of higher attenuation – see the attached attenuation table below. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 ° C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RG174/U
Connector SMA(m) Maximum input power 10  W
Power voltage 2.5 – 5.5 V DC Polarization R.H.C.P.
Execuion External Operating temperature -20 ~ +65  °C
Dimensions 82 x 28  mm Directivity Directional
Bandwidth 10  MHz Technology GPS , GLONASS
Weight 206.66  g Gain 3  dBi , 0  dBi , 1.5  dBi
VSWR <2.0:1 Type of attachment Screw Mount
Certification RoHS , ISO 9001 , ISO 14001
