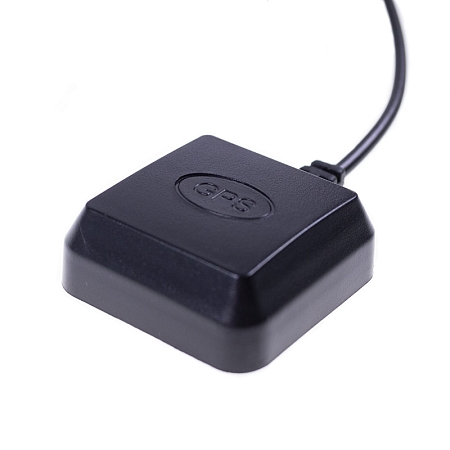

Antenna GPS/GLONASS Magnet Mount 004, SMA(m), RG174/5m

Product code: AP-AGNSS-L004M-S5 /Manufacturer: SECTRON

ap-agnss-l004m-s5-gps-antena-02 ap-agnss-l004m-s5-gps-antena-05 ap-agnss-l004m-s5-gps-antena-04 ap-agnss-l004m-s5-gps-antena-03 ap-agnss-l004m-s5-gps-antena-02 ap-agnss-l004m-s5-gps-antena-01

7.88 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Directional internal antenna for GPS and GLONASS

Directional internal antenna for GPS and GLONASS. The antenna operates in two bands, 1545.72 and 1602 MHz. The antenna reaches up to 28 dBi gain when combined with an amplifier. It is suitable for use in cars and other means of transport. Here it is used for navigation and tracking systems, electronic books and other devices. RG174 / U cable with a length of 5 m is attached to the antenna, which is terminated with SMA (m) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174/U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc. There are also specially modified types of RG174/U cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.

Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RG174/U
Connector: SMA(m) LNA Gain: 28 dB
Maximum input power: 10 W max. Polarization: R.H.C.P.
Execution: External Operational temperature: -40 °C - +85 °C
Dimensions: 39 x 35 x 14 mm Directivity: Directional
Technology : GPS / GLONASS Weight: 79.33 g
VSWR: <1.5:1 Radiation angle: H 40° V 35°
GAIN: 3 dBi TYPE OF ATTACHMENT: Magnet Mount
