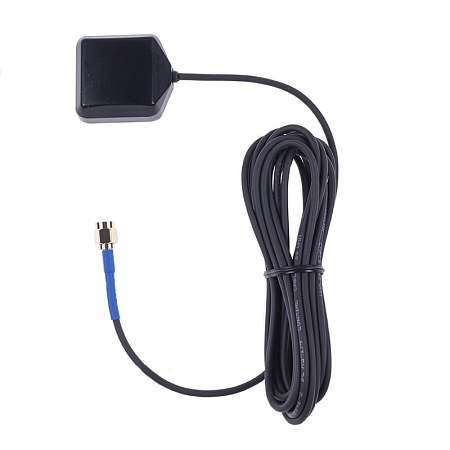

Antenna GPS/GLONASS Magnet Mount, SMA(m), Wheeled Vehicle Cable SC-174/3m

Product code: AP-AGNSS-SMA-SC174 /Manufacturer: SECTRON

ao-agnss-gps-antena-sma-sc-01 ao-agnss-sma-sc1-gps-antena-7-02 ao-agnss-sma-sc174-gps-antena-06 ao-agnss-sma-sc174-gps-antena-05 ao-agnss-sma-sc174-gps-antena-04 ao-agnss-sma-sc174-gps-antena-03

9.10 EUR Without VAT

In stock When do I get the item?

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional internal GPS/GLONASS antenna

Omnidirectional internal antenna for GPS and GLONASS. The antenna operates in two bands, 1545.72 and 1602 MHz and reaches up to 25/18 dBi gain when combined with an amplifier. Thanks to the built-in magnet, it is suitable for placement on any metal surface. The antenna is supplied with a certified SC-174 cable that meets the EN-45545-2:2020 standard. The cable length is 3 m, terminated with an SMA (m) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties

Cable specifications SC-174:

The SC-174 cable meets the EN-45545-2:2020 standard and is designed to not spread fire and is suitable for installation in wheeled and rail vehicles. The characteristic impedance of the cable is 50 Ω.

Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: SC‐174/U
Connector: SMA(m) LNA Gain: 25 dB / 18 dB
Maximum input power: 10 W max. Input voltage: 3 V
Polarization: R.H.C.P. Execution: External
Operational temperature: -40 °C - +85 °C Dimensions: 38.2 x 34.2 x 12.6 mm
Directivity: Omni-directional Technology : GPS / GLONASS
Weight: 53.5 g VSWR: <1.6:1
GAIN: 0 dBi TYPE OF ATTACHMENT: Magnet Mount
