Combined antenna GPS/LTE/Wi-Fi

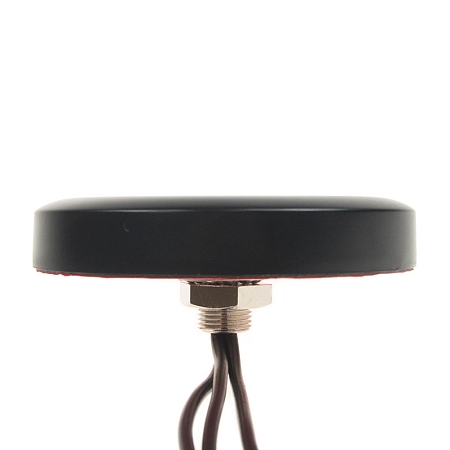

Combined antenna designed for receiving/transmitting signals in GPS/LTE/Wi-Fi technologies. The antenna is functional in the bands 1575.42/698-960/1710-269 /2400-2483.5/4900-5825 MHz. In combination with an amplifier, it achieves a gain value of 28 dBi in the GPS band, it is also used for connection to cellular modems/routers. The antenna is supplied with three 1.6 m RG174/U cables with SMA (m)/SMA (m)/SMA-RP (f-pin) connectors. Thanks to its high degree of protection IP66 it is suitable for outdoor installations.
Connector specifications SMA:
These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.
Cable specifications RG174 / U:
The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.
Technical parameters can be found in the attached datasheet.
