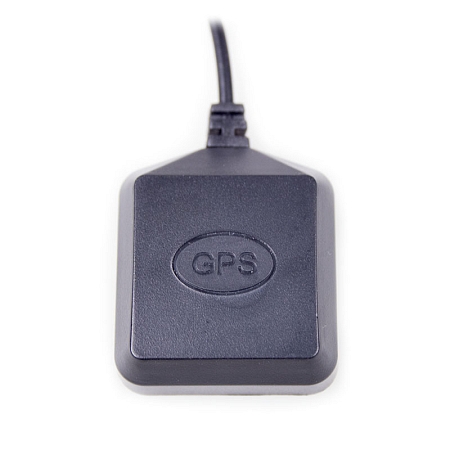

Antenna GPS Magnet Mount 004, SMA(m), RG174/1.5m

Product code: AP-AGPS-A004M-S1.5 /Manufacturer: SECTRON

New item
ap-agps-a004m-s3-gps-antenna-sectron-04 ap-agps-a004m-s3-gps-antenna-sectron-03 ap-agps-a004m-s3-gps-antenna-sectron-02 ap-agps-a004m-s3-01

7.65 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Name and surname*
By submitting the form, you agree to the privacy policy.
Your name and surname*
Send e-mail*
By submitting the form, you agree to the privacy policy.


Directional GPS antenna

Directional antenna for GPS technologies and operates in band 1545.72 MHz. The antenna reaches up to 28 dBi gain when combined with an amplifier. Thanks to the built-in magnet, it is suitable for a placement on any metal surface, eg on the roof of a vehicle. The antenna is suitable for cars. Used for navigation and tracking systems, electronic books and other devices. The antenna is suitable for cars. It is supplied with 1.5 m cable with SMA(m) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174/U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.


Certifikace: RoHS impendance: 50 Ohm
Cable: RG174/U Connector: SMA(m)
LNA Gain: 28 dB Maximum input power: 10 W max.
Input voltage: 2.2 V - 5.5 V DC Polarization: R.H.C.P.
Execution: External Operational temperature: -40 °C - +85 °C
Dimensions: 35.3 x 39.3 x 13.7 mm Directivity: Directional
Width zone: 5 MHz Technology : GPS
Weight: 42.39 g VSWR: <1.5:1
Radiation angle: H 70° V 80° GAIN: 2 dBi
