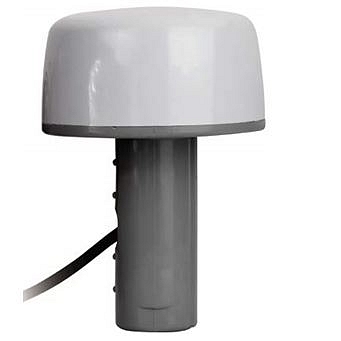

Antenna GPS Mounting Marine 005, N(m), RG58/1m

Product code: AP-AGPS-A005N /Manufacturer: SECTRON

New item
ap-agps-a005n ap-agps-a005b-05 ap-agps-a005b-01 ap-agps-a005b-02 ap-agps-a005b-03 ap-agps-a005b-04

17.71 EUR Without VAT

On request When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

GPS Marine Antenna

Directional Marine Antenna is designed to receive the signal from GPS technology. Works in the 1575.42 MHz band. In combination with the integrated amplifier, this active antenna achieves up to 42 dBi of total gain. Thanks to IP67, this antenna is suitable for outdoor use. The antenna is highly resistant to harsh weather conditions. The antenna includes a 1 m long RG58 coaxial cable, which is terminated with an N (m) connector.

Connector specifications N:

Connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. Temperature range is -65 °C to +165 °C. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.

Cable specifications RG58:

The RG58 coaxial cable is compatible with connectors applicable to a 5 mm cable diameter. It is mainly used for the 0-1 GHz frequency range, it can also be used for higher frequencies, but at the cost of higher attenuation. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 75 ° C. This cable is suitable for external WiFi / GPS / GSM antennas. It is also often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / N / SMA / TNC and others. There are also specially modified types of RG58 cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.

The antenna can be used for these GARMIN devices:

AIS™ 600
GPS 152™
GPS 152H
GPSMAP® 420/420s
GPSMAP® 421/421s
GPSMAP® 430/430s
GPSMAP® 431/431s
GPSMAP® 440/440s
GPSMAP® 441/441s
GPSMAP® 520/520s
GPSMAP® 521/521s
GPSMAP® 525/525s
GPSMAP® 526/526s
GPSMAP® 527/527xs
GPSMAP® 530/530s
GPSMAP® 531/531s
GPSMAP® 535/535s
GPSMAP® 536/536s
GPSMAP® 540/540s
GPSMAP® 541/541s
GPSMAP® 545/545s
GPSMAP® 546/546s
GPSMAP 720/720s
GPSMAP® 721/721xs
GPSMAP® 78/78s (with adaptor MCX to BNC 010-10121-00)
GPSMAP® 820/820xs
GPSMAP® 1020

More information can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RG58/U
Connector: N(m) Maximum input power: 10 W max.
Input voltage: 3-5V DC Polarization: R.H.C.P.
Execution: External Operational temperature: -40 °C - +85 °C
Dimensions: 93.5 x 133 mm Directivity: Omni-directional
Width zone: 5 MHz Technology : GPS
Weight: 503.72 g VSWR: <1.5:1
Radiation angle: H 360° V 30° GAIN: 42 dBi
TYPE OF ATTACHMENT: Screw Mount
