Antenna GPS Screw Mount 32, SMB(f), RG174/5m

Product code: AP-AGPS-CAPB /Manufacturer: SECTRON

ap-agps-capb-gps-antena-01 ap-agps-capb-gps-antena-03 ap-agps-capb-gps-antena-02 ap-agps-capb-gps-antena-04

11.16 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional GPS Mounting antenna

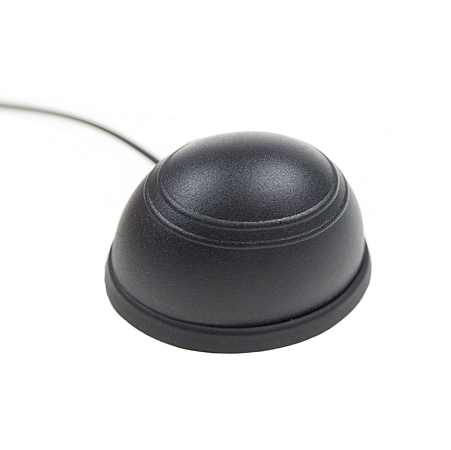

Omnidirectional antenna for GPS technology. The antenna operates in band 1545.72 MHz. The antenna reaches up to 30 dBi gain when combined with an amplifier. The antenna is suitable for cars and others vehicles. The antenna is supplied with a 5 m RG174/U cable terminated with an SMB (f) connector.

Cable specifications RG174/U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc. There are also specially modified types of RG174/U cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.

Connector specifications SMB:
SMB coaxial connectors are characterized by high reliability and mechanical stability. Snap-on mechanism provides fast and reliable connection. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 4 GHz. They are used, for example, to connect wireless WLAN devices, test devices and GSM / GPS / Wi-Fi antennas.


Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RG174/U
Connector: SMB(f) Maximum input power: 10 W max.
Input voltage: 2.7 V – 5.5 V DC Polarization: Linear
Execution: External Operational temperature: -30 to +90 °C °C
Dimensions: 53 x 38.4 x 30 mm Directivity: Omni-directional
Technology : GPS Weight: 131 g
VSWR: <1.5:1 Radiation angle: H 360° V 30°
GAIN: 30 dBi TYPE OF ATTACHMENT: Connector Mount
