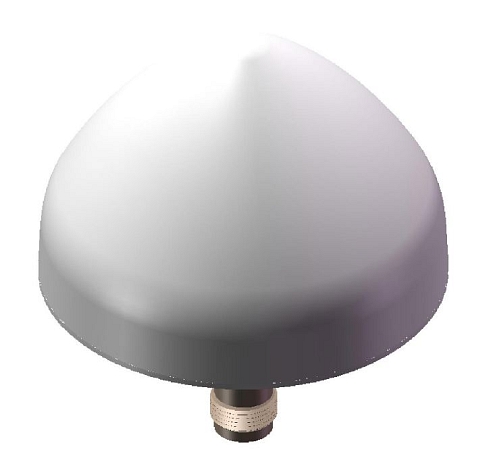

Antenna GPS Screw Mount Marine 225, 40 dBi, TNC

Product code: AP-AGPS-A225T /Manufacturer: SECTRON

New item
ap-agps-a225t 25t spodek

17.71 EUR Without VAT

On request When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional antenna Marine 225

Omnidirectional Marine Antenna with connector TNC is designed to receive signal from GPS technology. Works in the 1575.42 MHz band. In combination with an amplifier, this active antenna achieves up to 40 dBi of total gain. The antenna is highly resistant to harsh weather conditions.

Specification connector TNC:

TNC coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency range up to 11 GHz. TNC connectors are used, for example, to connect wireless WLAN devices, test equipment and GSM / GPS / Wi-Fi antennas.

Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: N/A
Connector: TNC(f) Maximum input power: 10 W max.
Input voltage: 2.7-10V DC Polarization: R.H.C.P.
Execution: External Operational temperature: -40 °C - +85 °C
Dimensions: 66.5 x 46.1 mm Directivity: Omni-directional
Width zone: 5 MHz Technology : GPS
Weight: 151.42 g VSWR: <1.5:1
Radiation angle: H 360° V 30° GAIN: 40 dBi
TYPE OF ATTACHMENT: Mounting

Documents for download

AP-AGPS-A225T6.pdf (1366.316 kB)
