Product code: AP-AGPS-56T
Producer: SECTRON

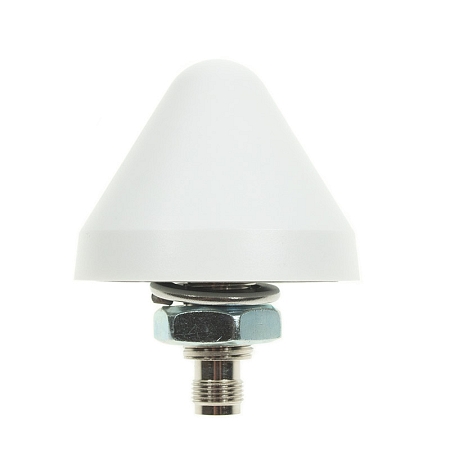

Antenna GPS Screw Mount Marine, 45 dBi, TNC(f)

Product code: AP-AGPS-56T
Producer: SECTRON

Antenna GPS Screw Mount Marine, 45 dBi, TNC(f)

Mount Marine active antenna is designed to receive signal for GPS technology. Works in the 1575.42 MHz band. In combination with an amplifier, this active antenna achieves up to 45 dBi of total gain.

41.24incl. VAT (21%) / pc

excl. VAT 34.08 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Mount Marine active GPS antenna

Mount Marine active antenna is designed to receive signal for* GPS technology*. Works in the 1575.42 MHz band. In combination with an amplifier, this active antenna achieves up to 45 dBi of total gain. The antenna is highly resistant to harsh weather conditions. Thanks to IP67, this antenna is suitable for the outdoor use. It has an TNC(f) connector.

Connector specifications TNC:

TNC coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency range up to 11 GHz. TNC connectors are used, for example, to connect wireless WLAN devices, test equipment and GSM / GPS / Wi-Fi antennas.

Technical parameters can be found in the attached datashee

Parameters

Impedance 50  Ohm Connector TNC(f)
Power voltage 5.5 V DC Polarization R.H.C.P.
Execuion External Operating temperature -40 ~ +80  °C
Dimensions 72 x 59  mm Directivity Directional
Technology GPS Gain 1.5  dBi
VSWR <1.46:1 LNA Gain 45.21  dB
Type of attachment Screw Mount Certification RoHS , ISO 9001 , ISO 14001
Ingress protection (IP) IP67
