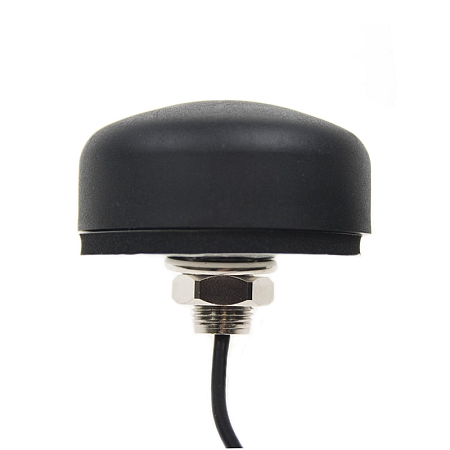

Antenna GPS Screw Mount R36, RG174/10m, open

Product code: AP-AGPS-36 /Manufacturer: SECTRON

ap-agps-36-02 ap-agps-36-03 ap-agps-36-04 ap-agps-36-01

13.19 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional GPS Antenna

Omnidirectional antenna for GPS technology operates in band 1545.72 MHz. The antenna reaches up to 30 dBi gain when combined with an amplifier. It is suitable for use in cars and other means of transport. Here it is used for navigation and tracking systems, electronic books and other devices. The antenna includes a 10m RG174/U cable with an optional connector.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.


Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RG174/U
Connector: Volný konec Maximum input power: 10 W max.
Input voltage: 2.7 - 5.5 V DC Polarization: R.H.C.P.
Execution: External Operational temperature: -30 °C - +90 °C
Dimensions: 54.7 x 23.3 mm Directivity: Omni-directional
Technology : GPS Weight: 190 g
VSWR: <2.0:1 Radiation angle: H 360° V 30°
GAIN: 30 dBi TYPE OF ATTACHMENT: Screw Mount
