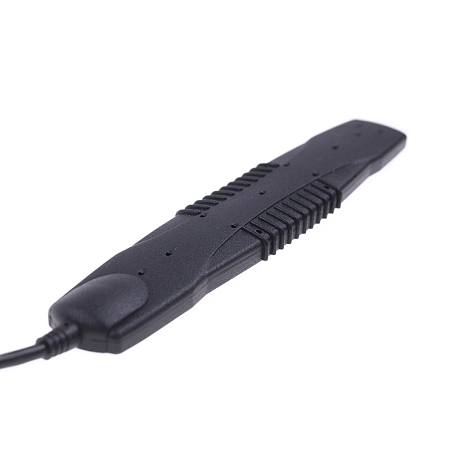

Antenna GSM Adhesive 25, 2.5 dB, FME(f), RG174/3m

Product code: AO-AGSM-SA1F /Manufacturer: SECTRON

ao-agsm-sa1f-obrazek 1f

4.48 EUR

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional adhesive GSM antenna

Omnidirectional adhesive antenna for GSM technologies. The antenna operates in bands 900/1800/1900/2100 MHz. It is suited for modems/routers.

More information can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RG174/U
Connector: FME(f) Maximum input power: 10 W max.
Polarization: Linear Execution: External
Operational temperature: -30 °C - +80 °C Dimensions: 129.5 x 22.8 x 6.7 mm
Directivity: Omni-directional Technology : GSM
Weight: 52.78 g VSWR: <2.0:1
Radiation angle: H 360° V 30° GAIN: 2.5 dBi
TYPE OF ATTACHMENT: Adhesive

Documents for download

AO-AGSM-SA1F6.pdf (836.443 kB)
