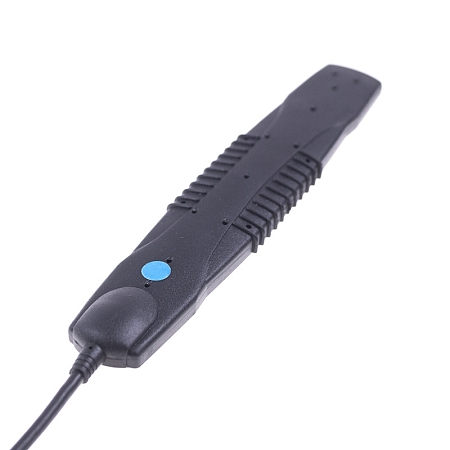

Antenna GSM Adhesive 25, 2.5dB, MMCX(m)R/A, RG174 2m

Product code: AO-AGSM-SA1C /Manufacturer: SECTRON

ao-agsm-sa1c-gsm-antenna-02 ao-agsm-sa1c-gsm-antenna-04 ao-agsm-sa1m-gsm-antena-03 ao-agsm-sa1c-gsm-antenna-01

3.73 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional adhesive GSM antenna

Omnidirectional adhesive antenna operates in bands 800/900/1700/1800 MHz. Used in vehicles to connect to cellular modems and routers or signal repeaters. The antenna is supplied with a 2 m long RG174/U cable, which is terminated with an MMCX(m)90° connector. Comes with 3M double-sided tape for easy mounting on glass or plastic.

Connector specifications MMCX:

These are coaxial connectors with a latch mechanism, which are compatible with MCX connectors, but have a smaller size. The characteristic impedance of the connector is 50 Ohm and the working frequency range up to 6 GHz. Operating temperature range -65 °C to + 165 °C. They are characterized by high reliability and mechanical stability. They are also used as standard connectors in GPS devices, WLAN networks, fixed and mobile communications.

Cable specifications RG174/U:

The cable labeled RG174/U is a much cheaper variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. It is mainly used for the frequency range 0 - 1 GHz, it can also be used for higher frequencies, but at the cost of higher attenuation – see the attached attenuation table below. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC/FAKRA/FME/MCX/MMCX/N/SMA/SMB/ SMP/TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS/GSM/WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RG174/U
Connector: MMCX(m) Maximum input power: 10 W max.
Polarization: Linear Execution: External
Operational temperature: -30 °C - +90 °C Dimensions: 129.5 x 22.8 x 6.7 mm
Directivity: Omni-directional Technology : GSM
Weight: 40.52 g VSWR: <2.0:1
Radiation angle: H-300°. V-30° GAIN: 2.5 dBi
TYPE OF ATTACHMENT: Adhesive
