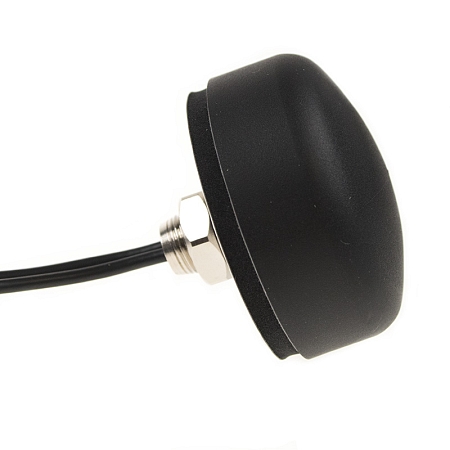

Omnidirectional combined GSM/GPS antenna
Omnidirectional combined antenna for GSM/GPS. The antenna operates in bands 900/1700/1800/1900/2100/1575.42 MHz. Reaches up to 27 dBi gain when combined with an amplifier in bands GPS. It issuitable for use in cars and other means of transport. Here it is used fornavigation and tracking systems, electronic books and other devices.

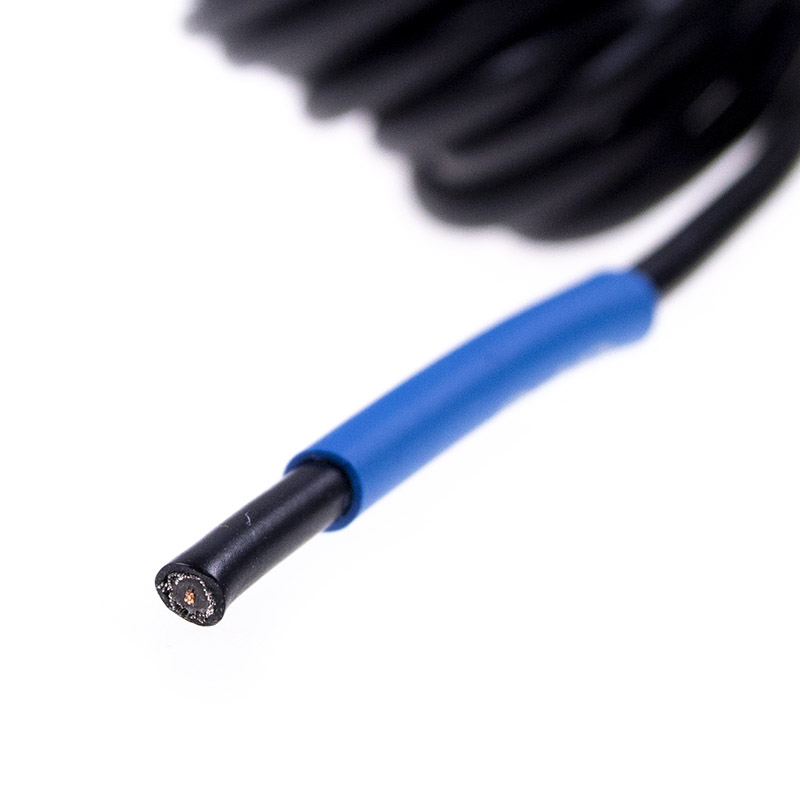

Thanks to its robust construction it has high resistance to damage, dust and water (IP67) and is suitable for outdoor installation. Two RG174/ U cables with a length of 2 m are attached to the antenna, Two RG174/ U cables with a length of 2 m are attached to the antenna, whith open end.
Specifications cable RG174/U:
The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C. It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.
More information can be found in the attached datasheet.
