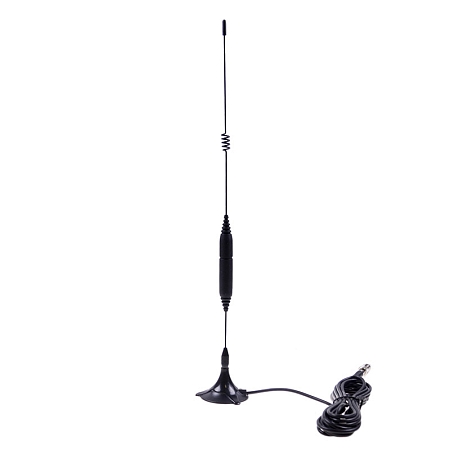

Antenna GSM Magnetic 50, 5dB, RG174/5m/open

Product code: AO-AGSM-MG5 /Manufacturer: SECTRON

ao-agsm-mg5f-gsm-antenna-01 ao-agsm-mg5f-gsm-antenna-02

3.35 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional GSM antenna, optional connector

Omnidirectional antenna with open end for GSM technologies. The antenna operates in bands 800/900/1800/1900/2100 MHz. The antenna is suitable for placement on a metal surface and is used for connection to modems and routers.  It is supplied with RG174 cable with a length of 5 m, with an open end.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a much cheaper variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. It is mainly used for the frequency range 0 - 1 GHz, it can also be used for higher frequencies, but at the cost of higher attenuation – see the attached attenuation table below. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RG174/U
Connector: Volný konec Maximum input power: 10 W max.
Polarization: Linear Execution: External
Operational temperature: -30 °C - +90 °C Dimensions: 40 x 300 mm
Directivity: Omni-directional Technology : GSM
Weight: 74 g VSWR: <1.8:1
Radiation angle: H 360° V 30° GAIN: 5 dBi
TYPE OF ATTACHMENT: Magnet Mount
