Detailed description

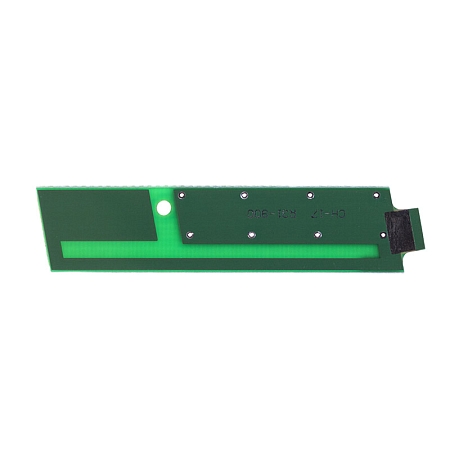

Omnidirectional internal antenna for receiving/transmitting GSM signal. The GSM antenna operates in the 900/1800 MHz bands. The antenna is suitable for integration on a PCB, for example into modems or other devices.
More information can be found in the attached datasheet.
Parameters
| Impedance | 50 Ohm | Cabel | N/A | ||
|---|---|---|---|---|---|
| Maximum input power | 10 W | Polarization | Linear | ||
| Execuion | Internal | Operating temperature | -30 ~ +90 °C | ||
| Dimensions | 52 x 12.2 x 1 mm | Directivity | Directional | ||
| Technology | GSM | Weight | 1.42 g | ||
| Gain | 0 dBi | VSWR | <2.0:1 | ||
| Radiation angle | H-300 V-30 | Type of attachment | Soldered |
Documents to download
1.09 € incl. VAT (21%) / pc
excl. VAT 0.90 € / pc
