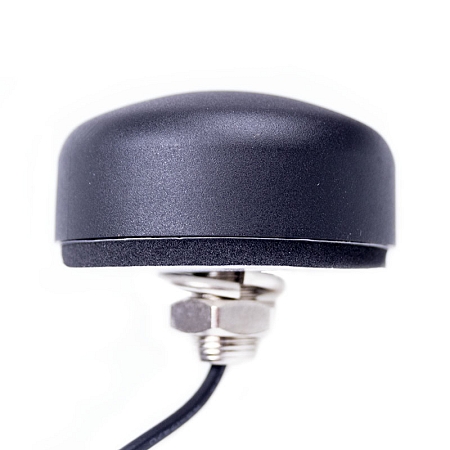

Antenna GSM Screw Mount R36, RG174/5m, open, IP67

Product code: AO-AGSM-36X /Manufacturer: SECTRON

ao-agsm-36s-01 ao-agsm-36s-gsm-antenna-sectron-02

10.09 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional mounting GSM antenna

Omnidirectional mounting antenna for GSM technologies. The antenna operates in bands 800/900/1700/1800/1900/2100 MHz. It is suited for modems/routers. It is supplied with RG174 cable with a length of 5 m, with an open end.

Cable specifications RG174:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.


Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RG174/U
Connector: Volný konec Maximum input power: 10 W max.
Polarization: Linear Execution: External
Operational temperature: -30 °C - +90 °C Dimensions: 54.4 x 28.6 mm
Directivity: Omni-directional Technology : GSM
Weight: 139.65 g VSWR: <2.0:1
GAIN: 0 dBi TYPE OF ATTACHMENT: Connector Mount
