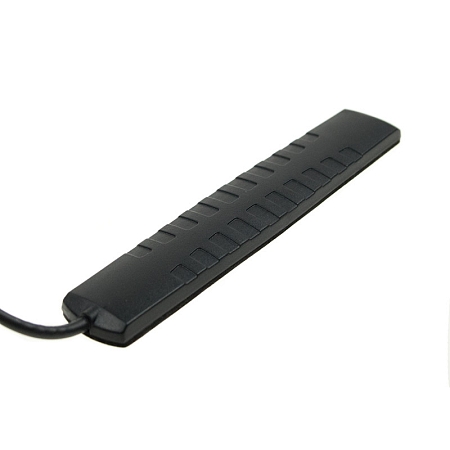

Omnidirectional adhesive GSM antenna
Omnidirectional adhesive antenna for GSM technology. The antenna operates in frequency bands 900/1800/2100 MHz. The antenna is suited for modems/routers. It is supplied with 2 m cable with MMCX (m) connector.
Connector specifications MMCX:
These are coaxial connectors with a latch mechanism, which are compatible with MCX connectors but have a smaller size. The characteristic impedance of the connector is 50 Ohm and the working frequency range up to 6 GHz. They are characterized by high reliability and mechanical stability. They are also used as standard connectors in GPS devices, WLAN networks, fixed and mobile communications.
Cable specifications RG174 / U:
The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.
Technical parameters can be found in the attached datasheet.
