Product code: AO-AUMTS-S2S
Producer: SECTRON

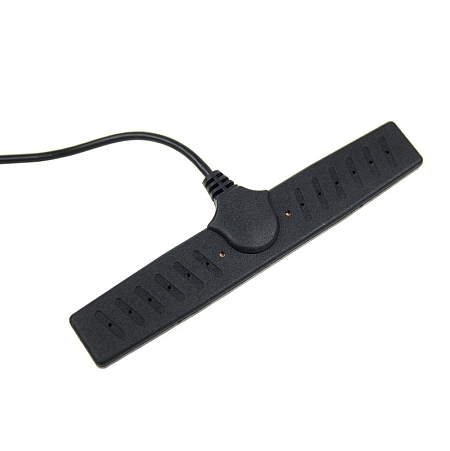

Antenna GSM/UMTS Adhesive U25, 2.5 dBi, SMA(m), RG174/3m

Sale
Product code: AO-AUMTS-S2S
Producer: SECTRON

Antenna GSM/UMTS Adhesive U25, 2.5 dBi, SMA(m), RG174/3m

Omnidirectional antenna for receiving GSM/UMTS signals. The antenna operates in band 800/1900/2100 MHz band.

8.11incl. VAT (21%) / pc

excl. VAT 6.70 € / pc

In stock < 10 pc
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional GSM/UMTS antenna

Omnidirectional antenna for receiving GSM/UMTS signals. The antenna operates in band 800/1900/2100 MHz bandand  is suitable for connection with modems/routers. It comes with 3M sticker for easy assembly. The antenna is supplied with 3m cable RG174/U with SMA(m) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a much cheaper variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. It is mainly used for the frequency range 0 - 1 GHz, it can also be used for higher frequencies, but at the cost of higher attenuation – see the attached attenuation table below. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 ° C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RG174/U
Connector SMA(m) Maximum input power 10  W
Polarization Linear Execuion External
Operating temperature -30 ~ +80  °C Dimensions 108 x 18 x 4  mm
Directivity Omnidirectional Technology GSM , UMTS
Weight 49.19  g Gain 2.5  dBi
VSWR <1.8:1 Radiation angle H 360 V 30
Type of attachment Adhesive
