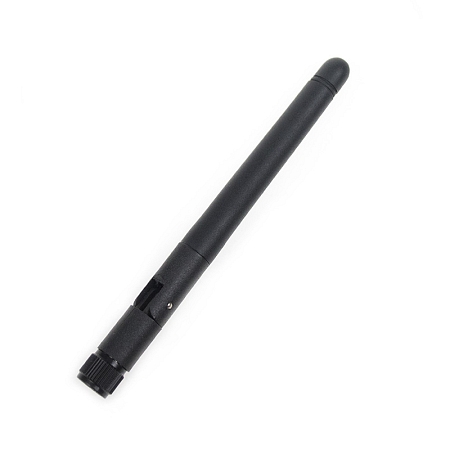

Antenna GSM/UMTS Connector Mount G402, 90°/180°, 2 dBi, SMA(m)

Item code: AO-AUMTS-G402S /Manufacturer: SECTRON

ao-aumts-g402s-1 ao-aumts-g402s-2 ao-aumts-g402s-3

2.96 EUR Without VAT

In stock When do I get the item?

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 24 months
Name and surname*
By submitting the form, you agree to the privacy policy.
Your name and surname*
Send e-mail*
By submitting the form, you agree to the privacy policy.


Omnidirectional GSM / UMTS antenna

Omnidirectional antenna with SMA (m) connector is suitable as receiver of signal in GSM and UMTS. The antenna operates in bands 900/1700/1800/1900 MHz. It is suited for modems and routers or signal repeaters.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Technical parameters can be found in the attached datasheet.


impendance: 50 Ohm Cable: N/A
Connector: SMA(m) Maximum input power: 10 W max.
Polarization: Linear Execution: External
Operational temperature: -40 °C - +85 °C Dimensions: 108 x 10 mm / 85.7 x 33.2 x 10 mm
Directivity: Omni-directional Technology : GSM / UMTS
Weight: 9.55 g VSWR: <2.5:1
Radiation angle: H 360° V 30° GAIN: 2 dBi
TYPE OF ATTACHMENT: Connector mount
