Product code: AO-AUMTS-G410S
Producer: SECTRON

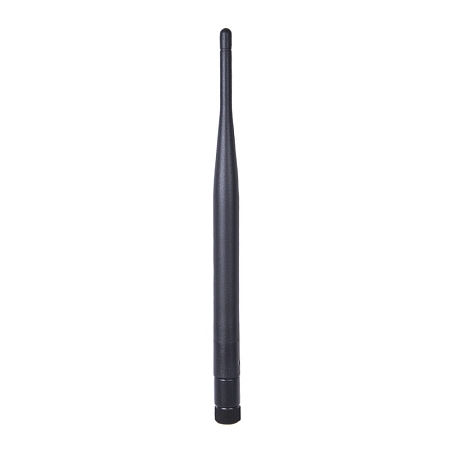

Antenna GSM/UMTS Connector Mount G410, 90°/180°, 3 dBi, SMA(m)

Product code: AO-AUMTS-G410S
Producer: SECTRON

Antenna GSM/UMTS Connector Mount G410, 90°/180°, 3 dBi, SMA(m)

Omnidirectional antenna for GSM/UMTS technologies. The antenna operates in frequency bands 800/900/1800/2100 MHz.

5.14incl. VAT (21%) / pc

excl. VAT 4.25 € / pc

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional GSM/UMTS antenna

Omnidirectional antenna with connector SMA for GSM/UMTS technologies. The antenna operates in frequency bands 800/900/1800/2100 MHz. The antenna is suited for modems/routers.

Specification connector SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

More information can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Connector SMA(m)
Maximum input power 10  W Polarization Linear
Execuion External Operating temperature -40 ~ +85  °C
Dimensions 197 x 12.9  mm , 173 x 37.3  mm Directivity Omnidirectional
Technology GSM , UMTS Weight 25.14  g
Gain 3  dBi VSWR <2.0:1
Radiation angle H 360 V 90 Type of attachment Connector mount
