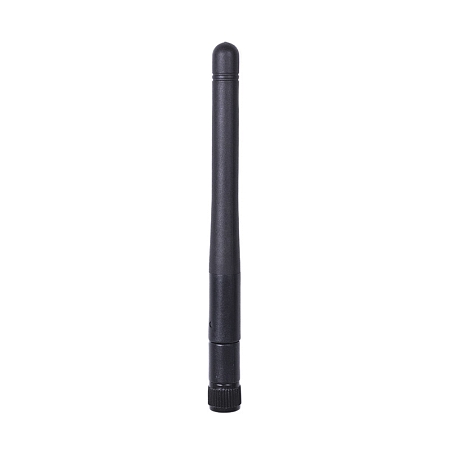

Antenna GSM/UMTS Connector Mount SMAK, 90°/180°, 2 dBi, SMA(m)

Product code: AO-AGSM-SMAK /Manufacturer: SECTRON

ao-agsm-smak-gsm-antenna-sectron-01 ao-agsm-smak-gsm-antenna-sectron-02 ao-agsm-smak-gsm-antenna-sectron-03

3.32 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional GSM/UMTS antenna

Omnidirectional internal antenna for GSM/UMT technologies with SMA(m) connector. The antenna operates in bands 800/900/1800/1900/2100 MHz. It is suited for modems and routers.

Specifications connector SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.


More information can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Connector: SMA(m)
Maximum input power: 10 W max. Polarization: Linear
Execution: External Operational temperature: -30 °C - +90 °C
Dimensions: 10 x 108 mm Directivity: Omni-directional
Technology : GSM / UMTS Weight: 9.56 g
VSWR: <1.8:1 Radiation angle: H 360° V 30°
GAIN: 2 dBi TYPE OF ATTACHMENT: Connector mounting
