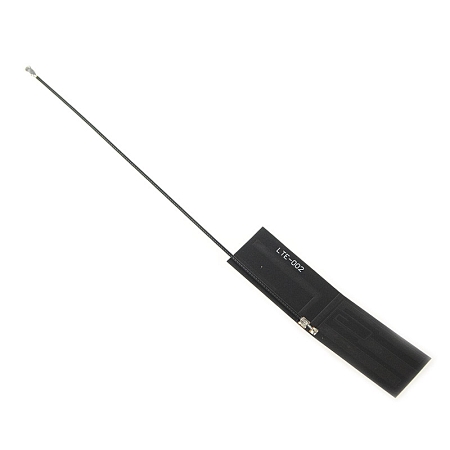

Antenna GSM/UMTS Flexible hexa-band, 70x20x0.1, U.FL088 150mm

Product code: AO-AG-FPC14U150 /Manufacturer: SECTRON

ag-fpc14u150-1 ag-fpc14u150-4 ag-fpc14u150-3 ag-fpc14u150-2

4.62 EUR

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional internal GSM/UMTS antenna

Omnidirectional internal antenna suitable for usage with GSM/UMTS technologies. The antenna operates on 850/900/1700/1800/1900/2100 MHz frequency. It is suited for modems/routers. It comes with a 150mm cable terminated with a U.FL connector and double-sided 3M tape for easy assembly.

Connector specifications U.FL:

U.FL connectors are used in cases where there is very little space for connecting / interconnecting RF components eg in wireless communication devices, electronic measuring instruments, mobile phones, GPS and wireless LANs. Gold-plated central contact of the U.FL connector improves its properties. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 6 GHz.

Cable specifications Hirose 088:

The Hirose 088 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / SMA / FME / MCX / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.


Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RF 1.37
Connector: U.FL(f) R/A Maximum input power: 10 W max.
Polarization: Linear Execution: Internal
Operational temperature: -20 °C - +80 °C Dimensions: 70 x 20 x 0.1 mm
Directivity: Omni-directional Technology : GSM / UMTS
Weight: 1.22 g VSWR: <2.0:1
Radiation angle: H 360° V 30° GAIN: 3 dBi
TYPE OF ATTACHMENT: Adhesive

Documents for download

AO-AG-FPC14U1503.pdf (1393.919 kB)
