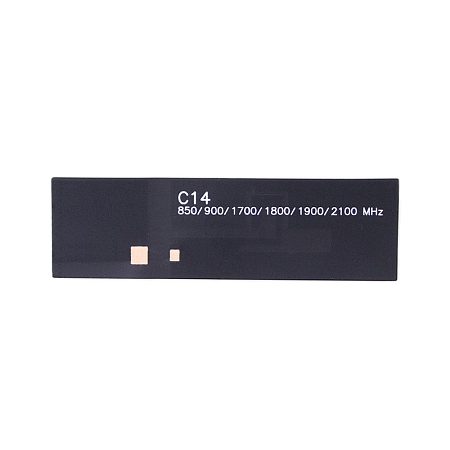

Antenna GSM/UMTS Flexible hexa-band, 70x20x0.1, w/o cable

Product code: AO-AG-FPC14 /Manufacturer: SECTRON

2.64 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional internal GSM/UMTS antenna

Omnidirectional internal antenna suitable for usage with GSM/UMTS technologies. The antenna operates on 850/900/1700/1800/1900/2100 MHz frequency. It is suited for modems/routers. Comes with 3M double-sided tape for easy assembly.

More information can be found in the attached datasheet.

Parameters

Frequency band: 850 MHz / 900 MHz / 1700 MHz / 1800 MHz / 1900 MHz / 2100 MHz impendance: 50 Ohm
Maximum input power: 10 W max. Polarization: Linear
Execution: Internal Operational temperature: -20 °C - +80 °C
Dimensions: 70 x 20 x 0.1 mm Directivity: Omni-directional
Technology : GSM / UMTS Weight: 0.51 g
VSWR: <2.0:1 Radiation angle: H 360° V 30°
GAIN: 2 dBi TYPE OF ATTACHMENT: Adhesive
