Antenna GSM/UMTS flexible hexa-band, LP-088 110mm open

Product code: AO-AG-FPC14-110 /Manufacturer: SECTRON

ao-ag-fpc14ua-02 ao-ag-fpc14ua-03 ao-ag-fpc14ua-04

2.81 EUR Without VAT

On request When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

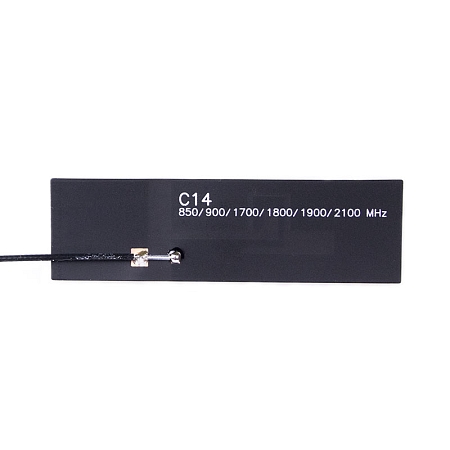

Omnidirectional internal GSM/UMTS antenna

Omnidirectional internal antenna suitable for usage with GSM/UMTS technologies. The antenna operates on 850/900/1700/1800/1900/2100 MHz frequency. It is suited for modems/routers. The antenna includes an RF 1.37 coaxial cable with an open end (optional connector), the cable length is 110 mm. In addition, it is equipped with double-sided 3M tape, which ensures easy installation.

Cable specifications RF 1.13:

The RF 1.13 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / SMA / FME / MCX / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.


Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RF 1.37
Connector: Volný konec Maximum input power: 10 W max.
Polarization: Linear Execution: Internal
Operational temperature: -20 °C - +80 °C Dimensions: 70 x 20 x 0.1 mm
Directivity: Omni-directional Technology : GSM / UMTS
Weight: 1.03 g VSWR: <2.0:1
Radiation angle: H 360° V 30° GAIN: 2 dBi
TYPE OF ATTACHMENT: Adhesive
