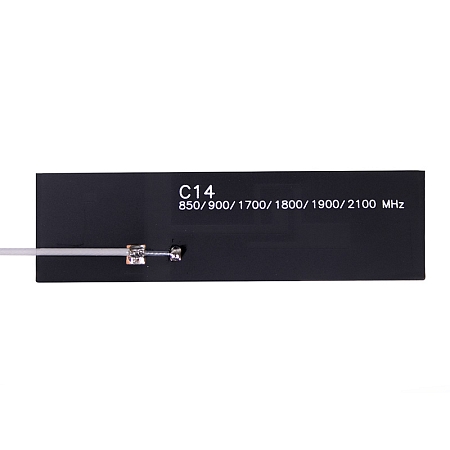

Antenna GSM/UMTS flexible hexa-band, SMA(m) cable, 100mm

Product code: AO-AG-FPC14SK100 /Manufacturer: SECTRON

ao-ag-fpc14sk100-gsm-antena-sectron-01 ao-ag-fpc14sk100-gsm-antena-sectron-03 ao-ag-fpc14sk100-gsm-antena-sectron-02 ao-ag-fpc14sk100-gsm-antena-sectron-04

4.01 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Antenna internal GSM/UMTS

Omnidirectional internal antenna is suitable for usage with GSM/UMTS/LTE technologies and operates on 850/900/1700/1800/1900/2100 MHz frequency. It is suited for modems/routers. The antenna is supplied with a 100 mm Hirose088 cable terminated with and SMA(m) connector. Easy installation is ensured by 3M tape, which is part of the antenna.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.


Cable specifications Hirose 088:

The Hirose 088 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. The characteristic impedance of the cable is 50 Ω. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / FAKRA / FME / MHF / MCX / MMC / N / QMA / SMA / SMA-RP / SMB / SMP / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.

Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RF 1.37
Connector: SMA(m) Maximum input power: 10 W max.
Polarization: Linear Execution: Internal
Operational temperature: -20 °C - +80 °C Dimensions: 70 x 20 x 0.1 mm
Directivity: Omni-directional Technology : GSM / UMTS
Weight: 4.02 g VSWR: <2.0:1
Radiation angle: H 360° V 30° GAIN: 2 dBi
TYPE OF ATTACHMENT: Adhesive
