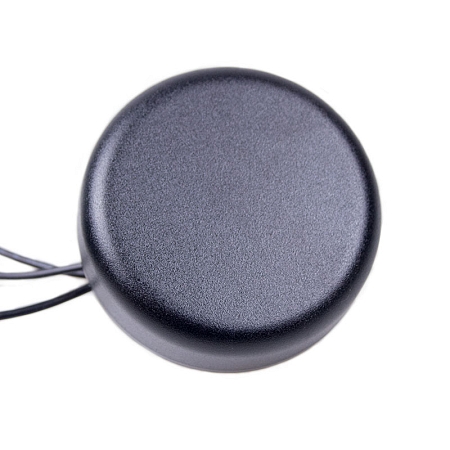

Antenna GSM/UMTS/GPS/WiFi Mounting R41, 3x RG174/5m, open

Product code: AO-AKOM-41O5 /Manufacturer: SECTRON

ao-akom-4105-kombi-antena-sectron-03 ao-akom-4105-kombi-antena-sectron-01 ao-akom-4105-kombi-antena-sectron-04 ao-akom-4105-kombi-antena-sectron-02

50.26 EUR Without VAT

In stock When do I get the item?

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 24 months
Name and surname*
By submitting the form, you agree to the privacy policy.
Your name and surname*
Send e-mail*
By submitting the form, you agree to the privacy policy.


Combined GSM/UMTS/WIFI/GPS antenna

Combined mounting antenna for receiving signal in GSM/UMTS/WIFI/GPS technologies. The antenna operates in 900/1800/2100/2400/5800/1575.42 MHz bands. In combination with an amplifier, this active antenna achieves a total gain of 30 dBi in a GPS band. Thanks to the ability to operate with the mentioned technologies, the antenna is perfect for use in public transport and other means of transport. The antenna has three 5 m long RG174 cables with loose ends.

Cable specifications RG174/U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.


impendance: 50 Ohm Cable: RG174/U
Connector: Open end Maximum input power: 10 W max.
Input voltage: 3-5.5 V Polarization: Linear / R.H.C.P.
Execution: External Operational temperature: -20 °C - +60 °C
Dimensions: 80 x 25 mm Directivity: Omni-directional
Technology : GSM / UMTS / WiFi / GPS Weight: 281.36 g
VSWR: <2.0:1 Radiation angle: H 360° V 30°
GAIN: 0 dBi / 2 dBi / 30 dBi TYPE OF ATTACHMENT: Screw Mount
