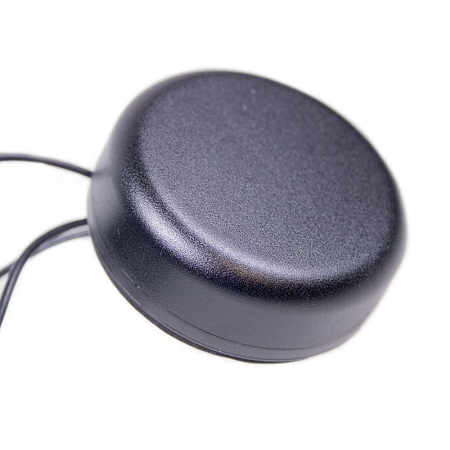

Antenna GSM/UMTS/GPS/WiFi Screw Mount R41, SMA(m)/SMA(m)/RP-SMA(pin f), 3x RG174/3m, 3M

Product code: AO-AKOM-41SSSRP
Producer: SECTRON

Antenna GSM/UMTS/GPS/WiFi Screw Mount R41, SMA(m)/SMA(m)/RP-SMA(pin f), 3x RG174/3m, 3M

Omnidirectional combined antenna for receiving a signal in GSM/UMTS/WiFi/GPS technologies. The antenna operates in 900/1800/2100/2400/1575.42 MHz bands.

65.16incl. VAT (21%) / pc

excl. VAT 53.85 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Directional, combined GSM/GPS/UMTS/WIFI antenna

Directional, combined antenna for receiving signal in GSM/GPS/UTMS/WIFI technologies. The antenna operates in 900/1575.42/1800/2100/2400 MHz bands. In combination with an amplifier, this active antenna achieves a total gain of 30 dBi. Thanks to the ability to operate with the mentioned technologies, the antenna is perfect for use in public transport and other means of transport. The antenna is supplied with three RG174 cables with a length of 3 m, terminated with SMA-RP (f) and 2x SMA (m) connectors.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RG174/U
Connector SMA(m) , SMA(m) , RP-SMA(f) Maximum input power 10  W
Power voltage 3-5.5 V DC Polarization R.H.C.P. , Linear
Execuion External Operating temperature -30 ~ +80  °C
Dimensions 80 x 25  mm Directivity Omnidirectional
Technology GSM , GPS , UMTS , WIFI Weight 192.45  g
Gain 0  dBi , 30  dBi , 2  dBi VSWR <2.0:1
Radiation angle H 360 V 30 Type of attachment Screw Mount
