Product code: AO-ALTE-FPC002 /Manufacturer: SECTRON
2.65 EUR
In stock When do I get the item?
Description

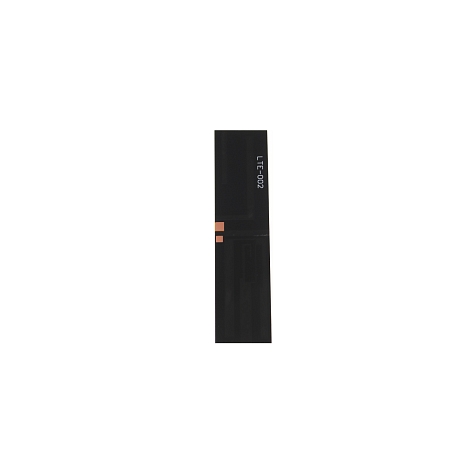

Omnidirectional antenna is suitable as receiver/transmitter of signal in GSM/UMTS/LTE. The antenna operates in bands 700/800/900/1700/1800/1900/2100/2600 MHz. It is suited for modems/routers.
More information can be found in the attached datasheet.
Parameters
| Frequency band: 700 MHz / 800 MHz / 900 MHz / 1700 MHz / 1800 MHz / 1900 MHz / 2100 MHz / 2600 MHz | impendance: 50 Ohm |
| Cable: N/A | Connector: Volný konec |
| Maximum input power: 10 W max. | Polarization: Linear |
| Execution: Internal | Operational temperature: -20 °C - +80 °C |
| Dimensions: 20 x 80 x 0.1 mm | Directivity: Omni-directional |
| Technology : GSM / UMTS / LTE | Weight: 1.42 g |
| VSWR: <2.0:1 | Radiation angle: H 360° V 30° |
| GAIN: 0 dBi | TYPE OF ATTACHMENT: Adhesive |
Documents for download
 AO-ALTE-FPC002_lte_antenna_datasheet.pdf (1121.279 kB) |
