Antenna GSM/UMTS/LTE/GPS/GLONASS Adhesive R40, 2x RG174/5m, 2x SMA(m)

Product code: AO-AKOM-40SS /Manufacturer: SECTRON

akom-40ss-04 akom-40ss-03 akom-40ss-02 akom-40ss-01

18.88 EUR

In stock When do I get the item?

guarantee 24 months
Name and surname*
By submitting the form, you agree to the privacy policy.
Your name and surname*
Send e-mail*
By submitting the form, you agree to the privacy policy.

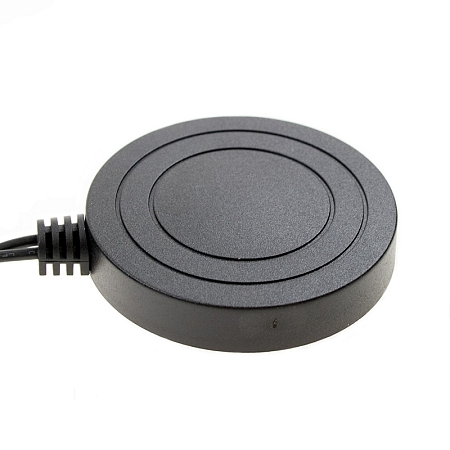

Omnidirectional internal antenna for GSM/GPS/GLONASS

Omnidirectional internal antenna for GSM/GPS/GLONASS. The antenna operates in bands 800/900/1700/1800/2100/2700/1575.42/1602 MHz. The antenna reaches up to 27 dBi gain when combined with an amplifier in bands GNSS. Is suitable for cars. The antenna is supplied with two 5 m cables with two SMA (m) connectors.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a much cheaper variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. It is mainly used for the frequency range 0 - 1 GHz, it can also be used for higher frequencies, but at the cost of higher attenuation – see the attached attenuation table below. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The operating temperature range is -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc.

Technical parameters can be found in the attached datasheet.


impendance: 50 Ohm Cable: RG174/U
Connector: SMA(m) Maximum input power: 10 W max.
Input voltage: 2.7 - 5.5 V DC Polarization: Linear / R.H.C.P.
Execution: External Operational temperature: -30 °C - +90 °C
Dimensions: 71 x 12 mm Directivity: Omni-directional
Technology : GSM / GPS / GLONASS Weight: 137.87 g
VSWR: <2.0:1 Radiation angle: H-360°. V-30°
GAIN: 0 dBi / 27 dBi TYPE OF ATTACHMENT: Adhesive
