Product code: AO-ALTE-MG9S10
Producer: SECTRON

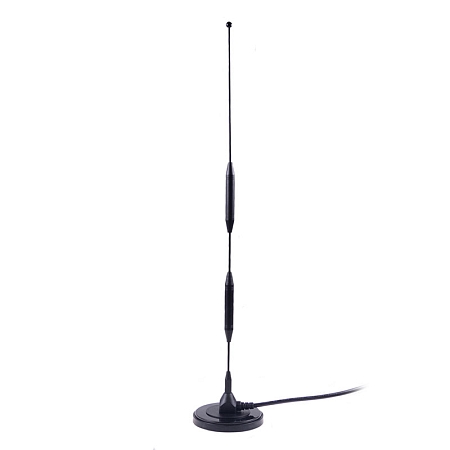

Antenna GSM/UMTS/LTE Magnet Mount 90, SMA(m) Cable Straight, Cable .195/10m

Product code: AO-ALTE-MG9S10
Producer: SECTRON

Antenna GSM/UMTS/LTE Magnet Mount 90, SMA(m) Cable Straight, Cable .195/10m

Omnidirectional magnetic antenna is suitable as receiver/transmitter of signal in GSM/UMTS/LTE and operates in bands 700/800/900/1700/1800/1900/2100/2600 MHz.

42.14incl. VAT (21%) / pc

excl. VAT 34.83 € / pc

Temporarily unavailable
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Omnidirectional magnetic GSM/UMTS/LTE antenna

Omnidirectional magnetic antenna with a gain 9 dBi is suitable as receiver/transmitter of signal in GSM/UMTS/LTE and operates in bands 700/800/900/1700/1800/1900/2100/2600 MHz. It is suited for modems/routers/terminals. The antenna has a magnetic base and is designed for placement on a metal surface. The antenna is supplied with a 10 m/.195 cable, with an SMA (m) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications .195:

The .195 coaxial cable is compatible with connectors applicable to cables with 4.95 mm outer diameter. It is mainly used for the frequency range 0-6 GHz. The characteristic impedance is 50 Ω and the operating temperature range -40 °C to + 85 °C. The shortening factor is set at 0.79. The .195 cable is used in metrology, wireless communications, the automotive industry and also for VHF and UHF applications. It is also often used for creating cable adaptors with plug connectors such as BNC / N / SMA / TNC.

Technical parameters can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel .195
Connector SMA(m) Maximum input power 10  W
Power voltage 2.2 – 5 V DC Polarization Linear
Execuion External Operating temperature -40 ~ +85  °C
Dimensions 81 x 444.3  mm Directivity Omnidirectional
Technology GSM , UMTS , LTE Weight 575  g
Gain 9  dBi VSWR <1.9:1
Type of attachment Magnetic Certification RoHS , ISO 9001 , ISO 14001
Material PVC
