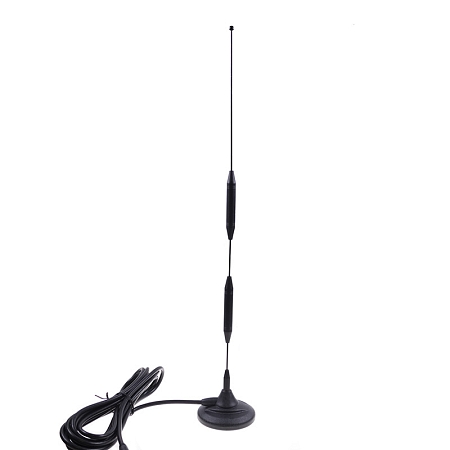

Antenna GSM/UMTS Magnet Mount 90, 9 dBi, SMA(m), .195/10m

Product code: AO-AGSM-MG9S10 /Manufacturer: SECTRON

ao-agsm-mg9s10-gsm-antena-obrazek agsm-mg9s10-gsm-antena-03 agsm-mg9s10-gsm-antena-02 agsm-mg9s10-gsm-antena-04

21.63 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional GSM/UMTS antenna

Omnidirectional antenna designed for signal reception in GSM/UMTS technologies. The antenna operates in bands 900/1800/2100 MHz. It is suitable for connection with modems/routers. With a suitable location on the grounding metal surface, the antenna reaches gain up to 9 dBi. Thanks to its precise construction, this antenna has an excellent weather resistance which makes it suitable for outdoor installations. It is supplied with 10m cable .195 with SMA (m) connector.

Connector specifications SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Cable specifications .195:

The .195 coaxial cable is compatible with connectors applicable to cables with 4.95 mm outer diameter. It is mainly used for the frequency range 0-6 GHz. The characteristic impedance is 50 Ω and the operating temperature range -40 °C to + 85 °C. The shortening factor is set at 0.79. The .195 cable is used in metrology, wireless communications, the automotive industry and also for VHF and UHF applications. It is also often used for creating cable adaptors with plug connectors such as BNC / N / SMA / TNC.


Technical parameters can be found in the attached datasheet.

Parameters

Certifikace: RoHS / ISO9001 / ISO14001 impendance: 50 Ohm
Cable: RG195/U Connector: SMA(m)
Maximum input power: 10 W max. Polarization: Linear
Execution: External Operational temperature: -30 °C - +90 °C
Dimensions: 70.0 x 453.7 mm Directivity: Omni-directional
Technology : GSM / UMTS Weight: 523.08 g
VSWR: <1.25:1 GAIN: 9 dBi
TYPE OF ATTACHMENT: Magnet Mount
