Antenna GSM/UMTS Magnet Mount 90, 9dBi, FME(f), RG58 3.5m

Product code: AO-AGSM-MG9F /Manufacturer: SECTRON

ao-agsm-mg9f-gsm-antenna-01 ao-agsm-mg9f-gsm-antenna-02 ao-agsm-mg9f-gsm-antenna-03 ao-agsm-mg9f-gsm-antenna-04

8.92 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

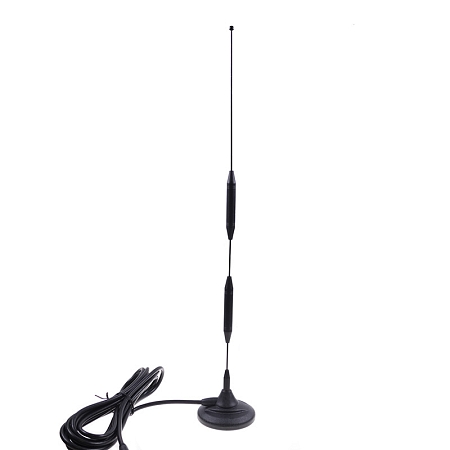

Omnidirectional rod GSM/UMTS antenna

Omnidirectional rod antenna with a magnetic base is designed for signal reception in GSM/UMTS technologies. The antenna operates in bands 900/1800/2100 MHz. It is suitable for connection with cellular modems and routers. With a suitable placement on the grounding metal surface, the antenna gains up to 9 dBi.  The antenna is supplied with a 3.5 m long RG58 cable, which is terminated with an FME(f) connector.

Connector specifications FME:

FME coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 2 GHz. Temperature range is -65 °C to +155 °C. Thanks to their compact size and long longevity, the FME connectors are used in the field of mobile communications as well as for GSM antennas. They are suitable for installation in vehicles as well.

Cable specifications RG58:

Kabel koncentryczny RG58 jest kompatybilny ze złączami stosowanymi do kabla o średnicy 5 mm. Przewód ten jest przeznaczony do stosowania w zakresie częstotliwości 0–1 GHz, może być również stosowany do wyższych częstotliwości, ale kosztem wyższego tłumienia. Impedancja kabla wynosi 50 Ω. Współczynnik skrócenia ustalono na 0,66. Zakres temperatury roboczej wynosi od -20 do 75 ° C. Kabel jest używany do produkcji anten zewnętrznych WiFi/GPS/GSM.
Najczęściej jest używany do produkcji RF konektorów antenowych ze złączami takimi jak BNC / FAKRA / FME/ N / SMA/ TNC itp .

Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RG58/U
Connector: FME(f) Maximum input power: 10 W max.
Polarization: Linear Execution: External
Operational temperature: -30 °C - +90 °C Dimensions: 68 x 448 mm
Directivity: Omni-directional Technology : GSM / UMTS
Weight: 301.53 g VSWR: <1.8:1
Radiation angle: H 360° V 30° GAIN: 9 dBi
TYPE OF ATTACHMENT: Magnet Mount
