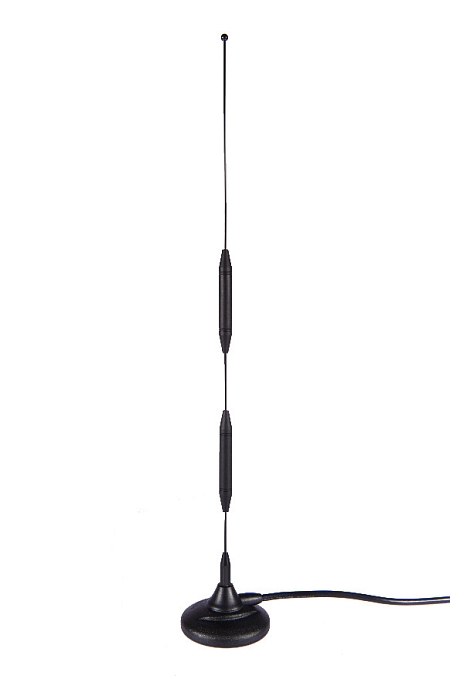

Antenna GSM/UMTS Magnet Mount 90/open, 9dBi, RG174/5m

Product code: AO-AGSM-MG9-174 /Manufacturer: SECTRON

mg9-antenna-obrazek ao-agsm-mg9-gsm-antenna-02 jpg ao-agsm-mg5c-02

7.96 EUR Without VAT

In stock When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Omnidirectional GSM/UMTS antenna, RG58, optional connector

Omnidirectional antenna designed with open end for signal reception in GSM/UMTS technologies. The antenna operates in bands 900/1800/2100 MHz. It is suitable for connection with modems/routers. With a suitable location on the grounding metal surface, the antenna reaches a gain up to 9 dBi. The antenna includes a coaxial cable RG174/U open-end  (optional connector). The cable length is 5 m.

Cable specifications RG174 / U:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc. There are also specially modified types of RG174/U cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.


Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Cable: RG174/U
Connector: Volný konec Maximum input power: 10 W max.
Polarization: Linear Execution: External
Operational temperature: -30 °C - +80 °C Dimensions: 68 x 448 mm
Directivity: Omni-directional Technology : GSM / UMTS
Weight: 225 g VSWR: <1.8:1
Radiation angle: H 360° V 30° GAIN: 9 dBi
TYPE OF ATTACHMENT: Magnet Mount

Documents for download

AO-AGSM-MG9-1742.pdf (2003.27 kB)
